Wiltec Pickup crane Loading crane 0-1861mm 500kg 360° slewing ring Workshop floor mounting

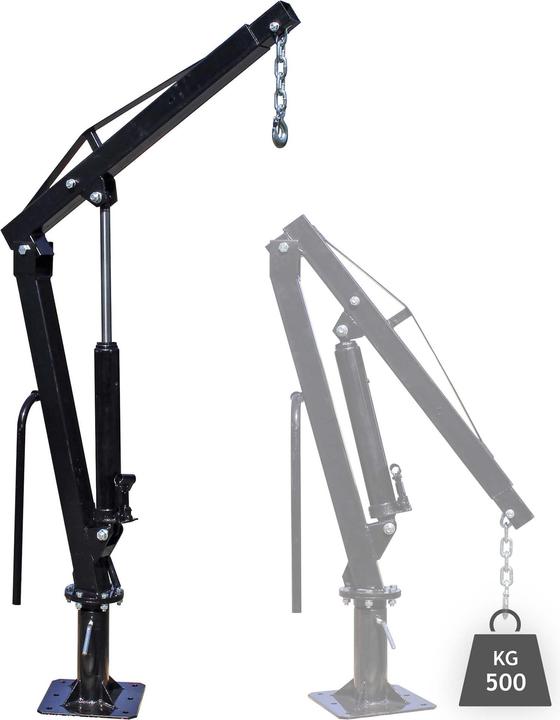

With this pickup crane, loading and unloading tasks can be completed in no time. The pickup crane is a practical helper for your lifting jobs. The maximum load capacity is 500 kg, allowing for a wide range of lifting tasks. The 360° rotating slewing ring with ball bearing and screw locking ensures maximum mobility. This way, the crane can be swung while loaded, reducing the effort required.

To ensure the pickup crane has a secure hold, pre-drilled holes are located in the base, which can be used for floor mounting, preventing the loading crane from tipping over. For example, it can be mounted on the pickup truck's loading area.

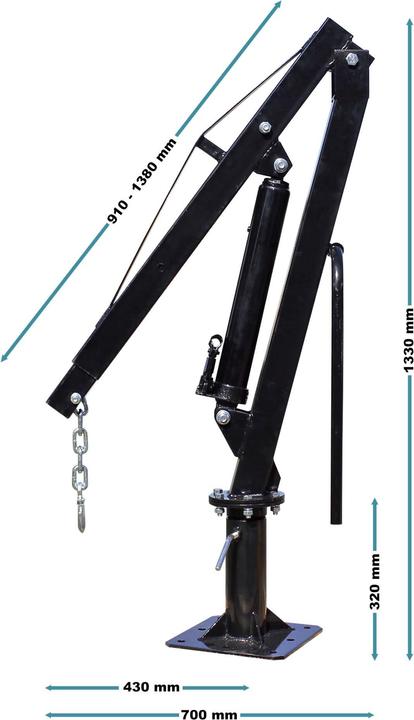

Height extended at 500 kg: 260–1630 mm
Height extended at 250 kg: 0–1860 mm
Length of the load arm at 500 kg: 1010 mm
Length of the load arm at 250 kg: 1380 mm
Chain length (with hook): 260 mm

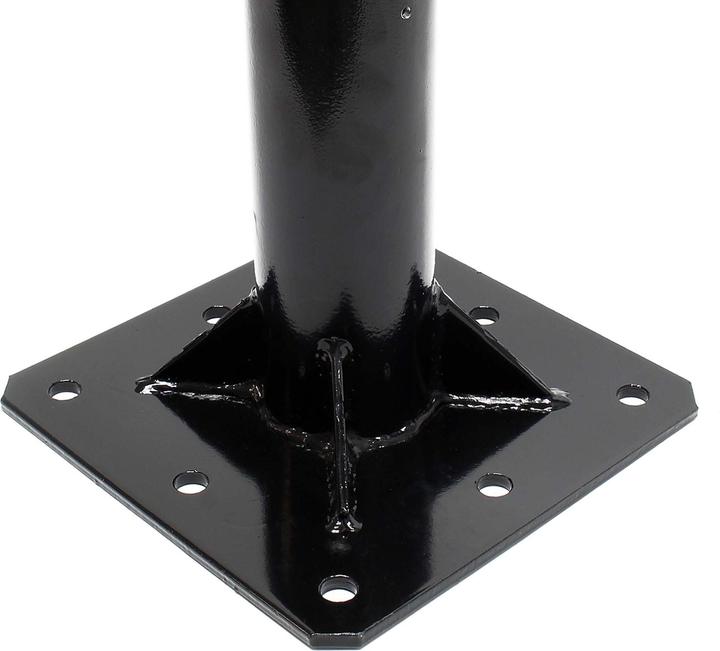

Crane base: 6 mm thick, plate 270 x 270 mm with 8 holes ø 16 mm.
