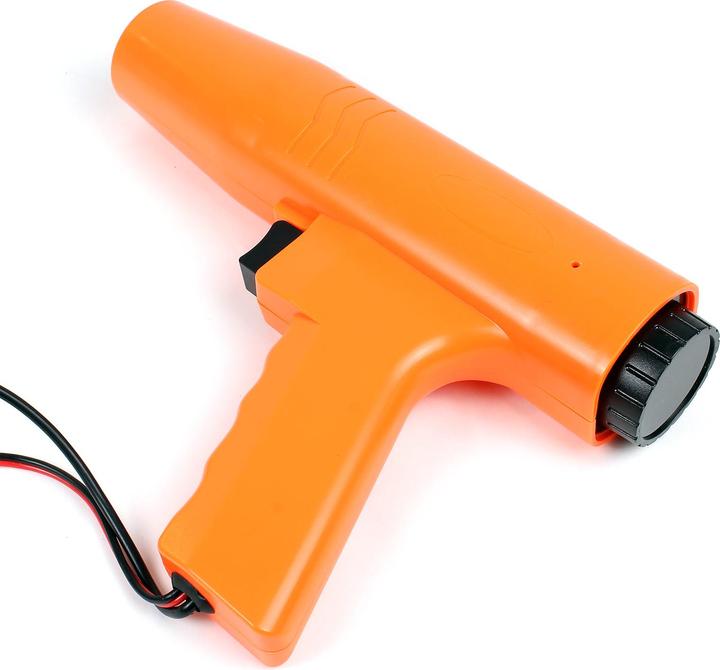

Wiltec Ignition Timing Strobe Light Lamp 12V Xenon Timing Light Inductive Pick Up

Ignition timing light for setting the ignition timing in gasoline engines with standard or transistor ignition. It can be used to set 12-volt ignitions. A super-bright xenon tube and a special collecting lens ensure optimal visibility of fixed markings even at speeds over 8000 RPM in the near-field range.

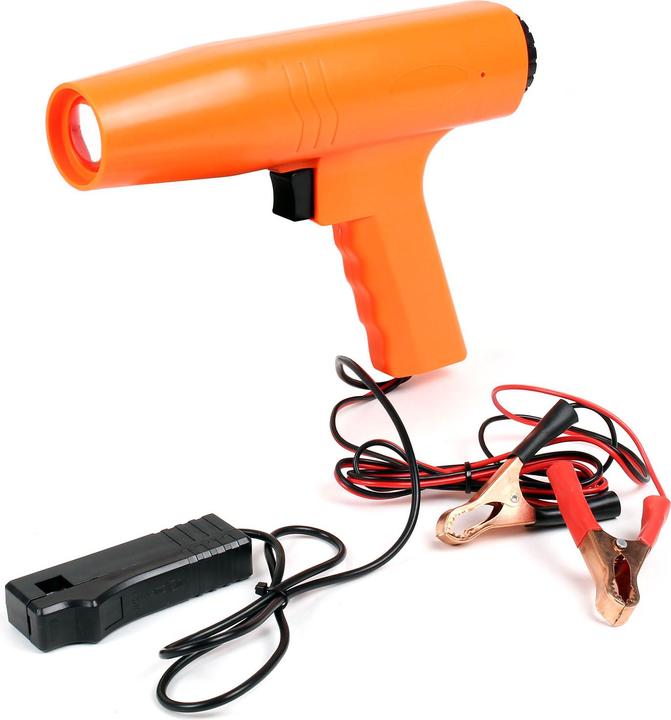

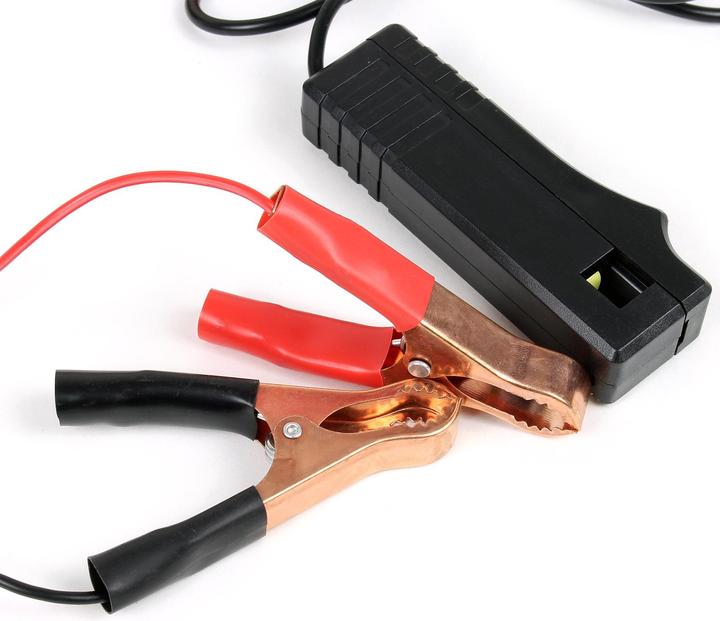

Connect the light with the crocodile clips to a 12-volt battery and attach the inductive clamp directly to the ignition cable near the spark plug connector.

The ignition timing should always be set when the engine is warm and the cold air flap of the carburetor is fully open. During measurement and adjustment, the engine must run at the original idle speed (usually around 850 ±50 RPM). If this is not the case, the idle speed must first be corrected.

Attach the inductive clamp of the timing light to the spark plug or the ignition cable of the first cylinder and connect the crocodile clips for 12 V +/- to the vehicle's 12-volt battery. The correct ignition timing can be found in the vehicle's operating manual or in a workshop manual. Depending on the model, the marking on the pulley will now flash with the strobe light.
