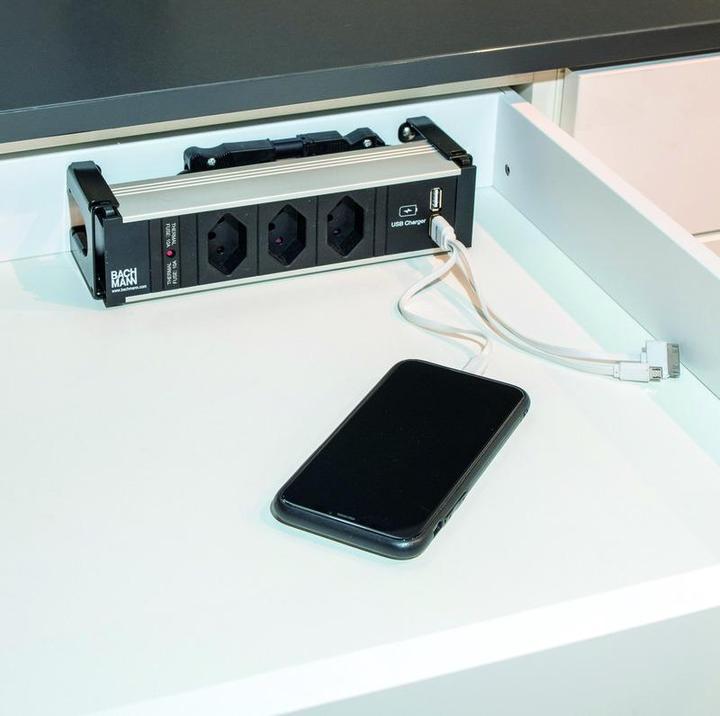

Werkstarck Media drawer insert with 230 V sockets and USB ports

Power strip including a free-hanging energy guide chain set for installation in drawers. The energy guide chain can be easily shortened or lengthened by clipping in and out the chain links. The chain opens at the inner radius, allowing it to accommodate the primary supply line. This prevents pinching or damaging the power supply. With the integrated Wieland GST 1813 plug connector, the electrification can be decoupled at any time, and the drawer can be removed.

Charging current of the USB socket: 2 x 5V DC, max. 2.1 A.
Dimensions of the socket: W/H/D 225/56/75 mm.

Media drawer consists of:
1 power strip including 2 media box holders for screw mounting with Wieland plug connector (suitable for all drawers with a clear back wall height of 60 mm or more).
1 free-hanging energy guide chain, length 1000 mm with 1 set of chain holders.
1 primary supply line 230 V, length 300/3000 mm with Wieland plug.
