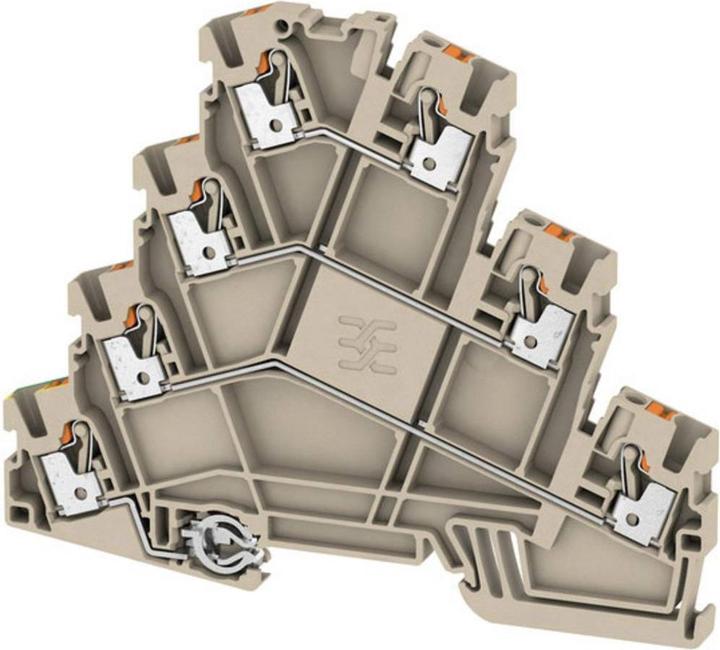

Weidmüller Motor connection terminal AMC 2.5

Weidmüller Motor Connection Terminal AMC 2.5

Manufacturer: Weidmüller
Designation: Motor connection terminal 2.5, 690V, 21A
Type: AMC 2.5

Connectable conductor cross-section fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..4 mm²

Rated current In: 22 A
Rated voltage: 690 V
Electrical connection type 1: Plug connection
Number of levels: 3
Number of terminals per level: 2
Mounting type: TH35 rail
Material of the insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of the insulating material according to UL 94: V0
Width: 5.1 mm
Height: 107.5 mm
Depth: 88 mm
End plate required: yes
Color: beige
Internally bridged levels: no

The motor connection terminal combines the performance characteristics of the larger pitch with the width of the smaller pitch. The result: maximization of the rated current while minimizing the size. This provides relief in purchasing, logistics, and design-in.
EAN: 4050118445022.
