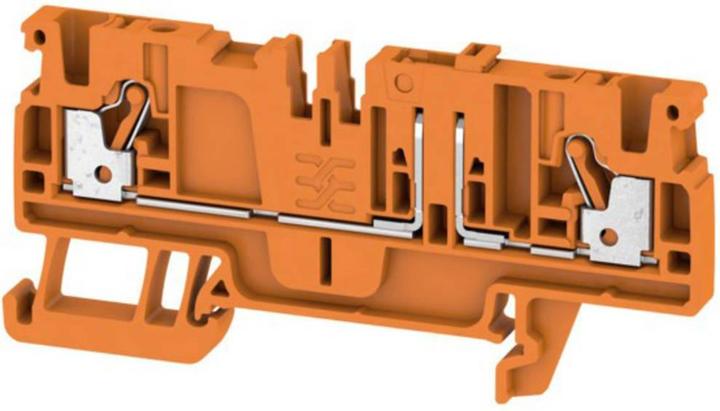

Weidmüller ADT 2.5 2C OR

Weidmüller Separation Measuring Terminal Block ADT 2.5 2C OR

Manufacturer: Weidmüller
Description: Separation Measuring Terminal Block PUSH IN, 2.5 mm²
Type: ADT 2.5 2C OR

Connectable conductor cross-section for fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section for solid: 0.5..2.5 mm²
Connectable conductor cross-section for multi-stranded: 0.5..4 mm²

Rated current In: 20 A
Rated voltage: 500 V
Electrical connection type 1: Plug connection
Number of tiers: 1
Number of connection points per tier: 2
Internally bridged tiers: no
Mounting type: TH35 DIN rail
Material of insulating body: Thermoplastic
Flammability class of insulating material according to UL 94: V0
Operating temperature: -60..130 °C

Width: 5.1 mm
Height: 77.5 mm
Depth: 37.65 mm
End plate required: yes
Color: orange
Longitudinal separation design: pivotable
Transverse separation design: none
With integrated test socket: yes

Weidmüller Separation Measuring Terminal Block ADT 2.5 2C OR: additional details for terminal block to separate circuits during tests or measurements.
EAN: 4050118374339.
