Paint application3
Product details

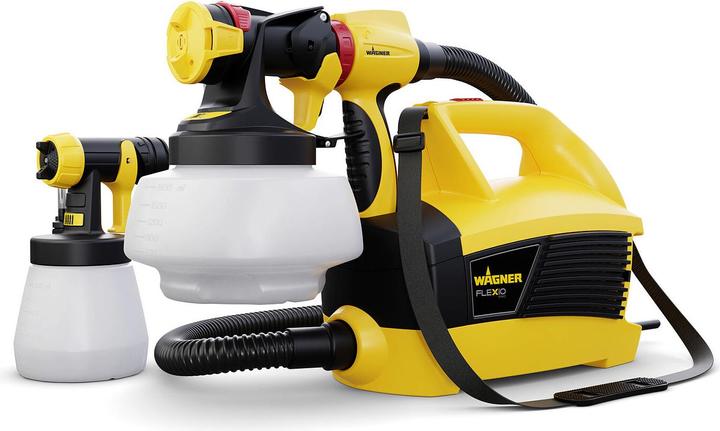

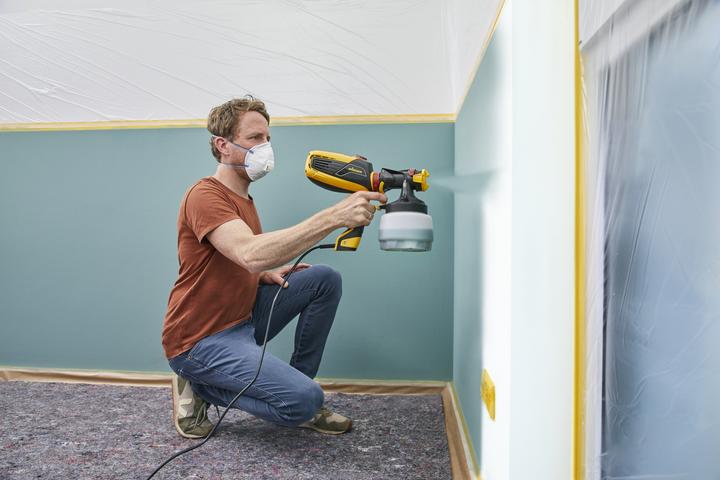

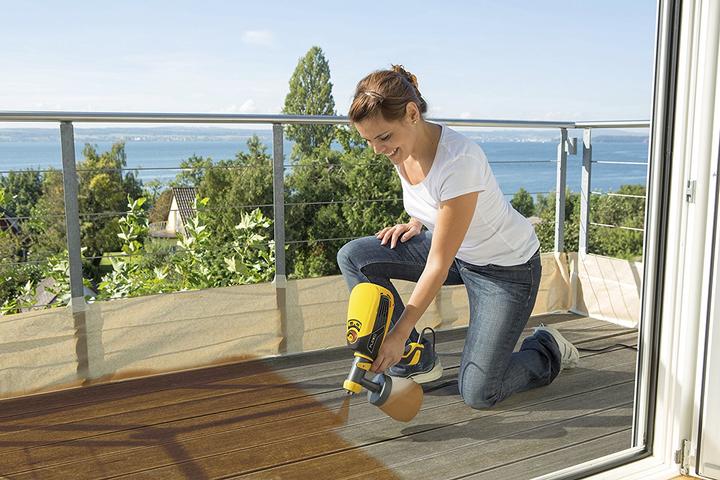

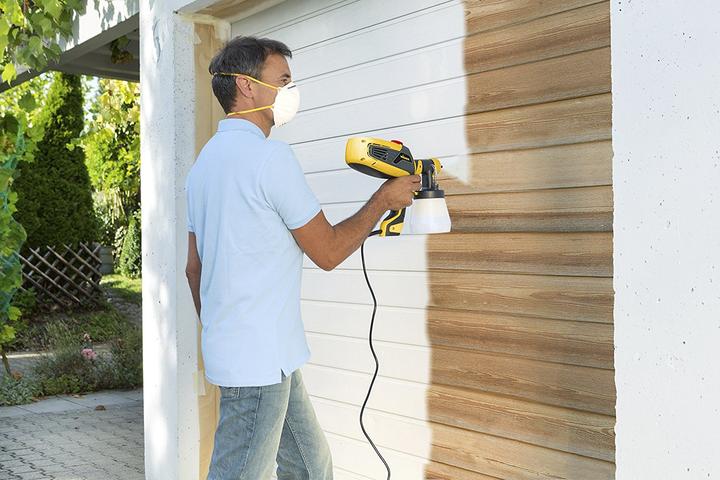

For those planning larger projects and looking to do more than just spray interior wall paint, the W 590 spray system is the ideal choice. With two spray attachments – for both thick and thin materials – you are well-equipped for applying wall paints, varnishes, and glazes. The powerful X-Boost turbine, combined with the innovative I-Spray nozzle, processes almost all commercially available materials without the need for dilution. You also remain flexible while spraying: the air and paint flow can be adjusted continuously. The spray jet can be set to horizontal or vertical, as well as wide or narrow, depending on the desired working direction; for varnishes and glazes, it can also be adjusted to a point spray for a quick, perfectly covering application. The W 590 FLEXiO comes in a handy carrying case.
Preparation of the coating material: Thoroughly stir the material in its original container. For interior wall paint, a mixing device is recommended. The W 590 is designed to process all commercially available paints undiluted. For smooth surfaces and particularly thick, gel-like paints, a dilution of 10% should be considered. Dilution may also be necessary if the spray is too superficial or if the delivery rate is too low, even at maximum settings. Detailed information on individual materials and the maximum permissible dilution can be found in the technical data sheet from the material manufacturer. Using spray material at least at room temperature will lead to better spraying results.
Important note on application
Please read the manual/operating instructions carefully before use.Paint system type | Spray system |
Surface | Ceiling, Wall smooth, Wall textured, Wood |
Application range | Indoor, Outdoor |
Colour type | 2-component lacquer, Clear lacquer, Emulsion paint, Lacquer, Latex paint, Marinade, Top coat, Undercoat, Water- & solvent-based glaze, Water- & solvent-containing varnish, Wood preservatives |
Power supply | Electrical connection |
Documents | |
Item number | 6338224 |
Manufacturer | Wagner |
Category | Paint systems |
Manufacturer no. | 2361540 |
Release date | 31.5.2017 |
Sales rank in Category Paint systems | 26 of 314 |
External links | |
May include power adapter | No |
Colour | Yellow |
Exact colour description | Black, White, Yellow |
Application range | Indoor, Outdoor |
Paint system type | Spray system |
Surface | Ceiling, Wall smooth, Wall textured, Wood |
Colour type | 2-component lacquer, Clear lacquer, Emulsion paint, Lacquer, Latex paint, Marinade, Top coat, Undercoat, Water- & solvent-based glaze, Water- & solvent-containing varnish, Wood preservatives |
Area of application | Home improvement |
Not suitable ink type | Combustible coating material, Highly abrasive material, House paint, Lye, Tartness |
Paint spraying system Accessory type | Spray attachment |
Paint application | 2.50 m2/min |
Conveying capacity | 500 ml/min |
Atomisation energy | 200 W |
Air flow control | Electric |
Container volume | 1.30 l |
Additional properties | Soft grip, Stepless ink volume regulation |
Adjustable beam direction | Yes |
Number of settlement levels | 2 x |
Power supply | Electrical connection |
Power | 630 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Paint container, Spray attachment |
Width | 350 mm |
Length | 450 mm |
Height | 160 mm |
Weight | 6 kg |
Length | 44 cm |
Width | 17.50 cm |
Height | 35 cm |
Weight | 4.29 kg |
