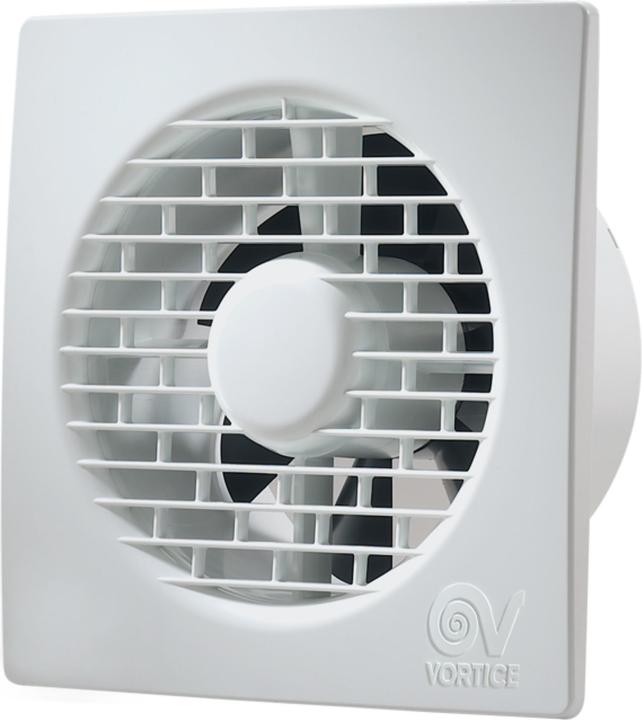

Product details
Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz
- Housing colour: White
- Housing material: UV-resistant ABS
- Nominal size: 90 mm
- Speed levels: 1
- Wattage: 14 W
- Current consumption: 0.08 A
- Revolutions per minute: 2500

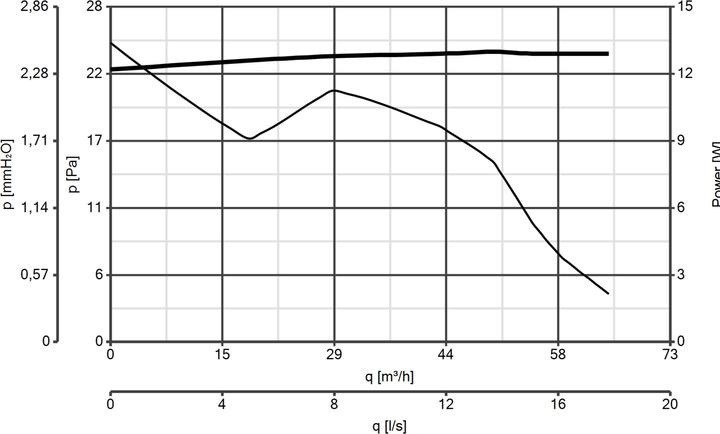

- Max. airflow rate: 65 m³/h
- Total pressure Pmax: 25 Pa
- Sound pressure level Lp-3m: 28.8 dB(A)
- Max. temperature for continuous operation: +50°C
- IP rating: IPX4
- Insulation class: II
- Front cover dimensions: 159 x 159 x 17 mm
- Total depth: 77 mm
- Diameter of duct connector: 92.5 mm
- Weight: 0.5 kg
- On/off via light switch (to be provided on-site)
- Thermal overload protection
- Integral backdraught valve prevents cold air from infiltrating the system
- Mounting options: Wall, ceiling.
Airflow | 65 m³/h |
Suitable for pipe diameter | 90 mm |
Power | 14 W |
Item number | 17544557 |
Manufacturer | Vortice |
Category | Ventilation fan |
Manufacturer no. | 11122 |
Release date | 22.11.2021 |
Sales rank in Category Ventilation fan | 37 of 2459 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Airflow | 65 m³/h |
Noise emission | 29 dB |
Suitable for pipe diameter | 90 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 14 W |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Length | 7.70 cm |
Width | 15.90 cm |
Height | 15.90 cm |
Weight | 500 g |
