Product details

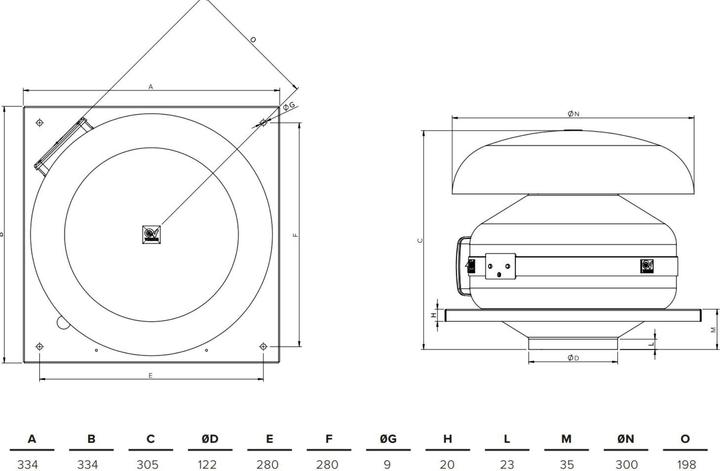

Dimensions and technical details:
- Voltage: 220-240 V ~ 50 Hz

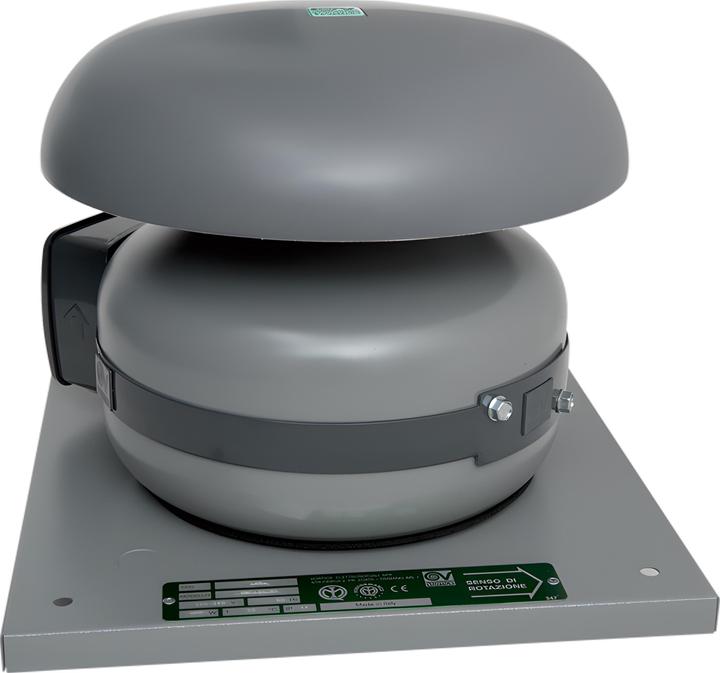

- Type: Centrifugal roof fan with mounting plate
- Housing color: Hammered grey
- Housing material: Phosphated steel, polyester powder coating
- Nominal width: 125 mm
- Speeds: 3
- Motor wattage: 12 / 24 / 50 W
- Current consumption: 0.13 / 0.18 / 0.23 A
- Revolutions per minute: 915 / 1538 / 2405
- Airflow rate: 118 / 200 / 312 m3/h
- Total pressure Pmax: 161.8 / 340.8 / 356.1 Pa
- Max. sound pressure level Lp-3m: 40.2 dB(A)
- Max. temperature for continuous operation: 50°C
- Protection code: IPX4
- Insulation class: II
- Dimensions of mounting plate: 334 x 334 x 20 mm
- Total depth: 305 mm
- Diameter of duct connection: 122 mm
- Weight: 4.6 kg
- Thermal overload protection.
Type of ventilation technology | Radial fan |
Airflow | 370 m³/h |
Suitable for pipe diameter | 125 mm |
Power | 50 W |
Item number | 37614413 |
Manufacturer | Vortice |
Category | Ventilation fan |
Manufacturer no. | 16141 |
Release date | 16.8.2023 |
Colour | Grey, Silver |
Exact colour description | Titanium Grey, Titanium Silver |
Material group | Metal |
Material | Metal |
Type of ventilation technology | Radial fan |
Airflow | 370 m³/h |
Noise emission | 40 dB |
Suitable for pipe diameter | 125 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 50 W |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Length | 33.40 cm |
Width | 33.40 cm |
Height | 30.50 cm |
Weight | 4600 g |
