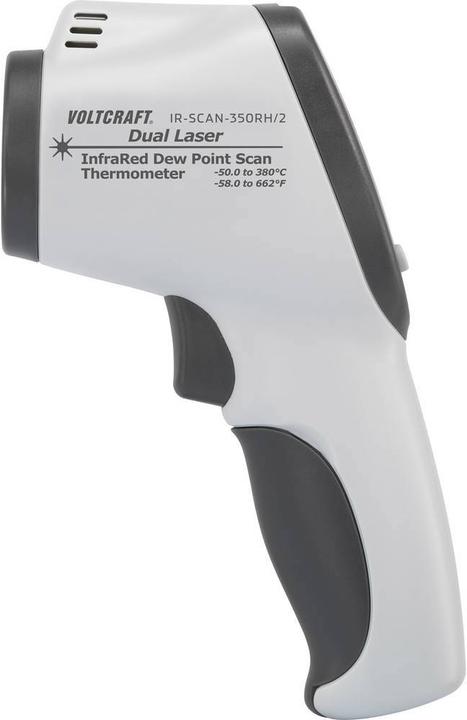

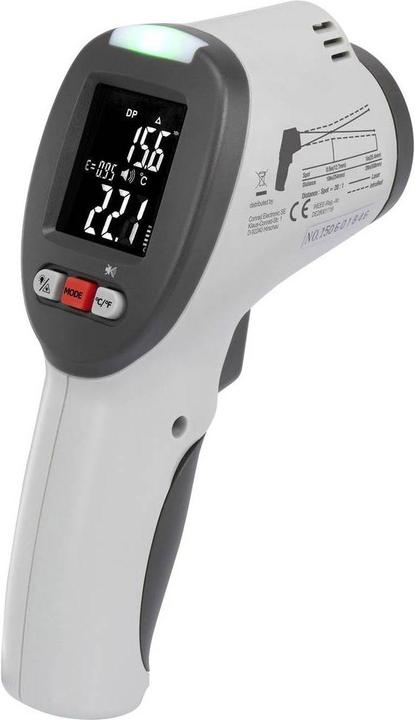

Voltcraft Infrared Thermometer IR-SCAN-3

IR temperature and dew point measuring device. This practical infrared thermometer is your perfect helper at home. Preserve the building fabric and protect yourself from the formation of harmful mould spores. The IR dew point measuring device IR-SCAN-350RH/2 detects mould-prone areas in your living spaces before the fungal infestation becomes visible.

Detect dew point. Consisting of an IR thermometer with an integrated humidity meter, the IR-SCAN-350RH/2 can be used to determine the dew point. If this critical value is reached or undershot, there is a risk of mould infestation. The device is very easy to use at the touch of a button. When switched on, the room air temperature and humidity are measured automatically. The dew point determined from this now serves as a reference for the non-contact IR measurements of potential mould risk zones. The device shows where various insulation weaknesses with resulting damp patches need to be prevented.

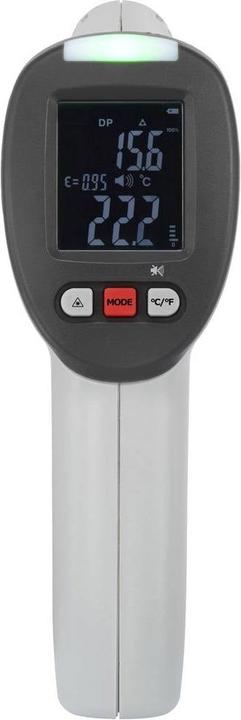

Dew point measurement. The dew point indicates the ambient conditions at which the humidity in the room condenses on surfaces. This condensate can become a breeding ground for mould. The dew point temperature is calculated from the three measured parameters of air temperature, humidity, and surface temperature. The dew point status is also displayed as a traffic light indicator (green/yellow/red) for easy reading.

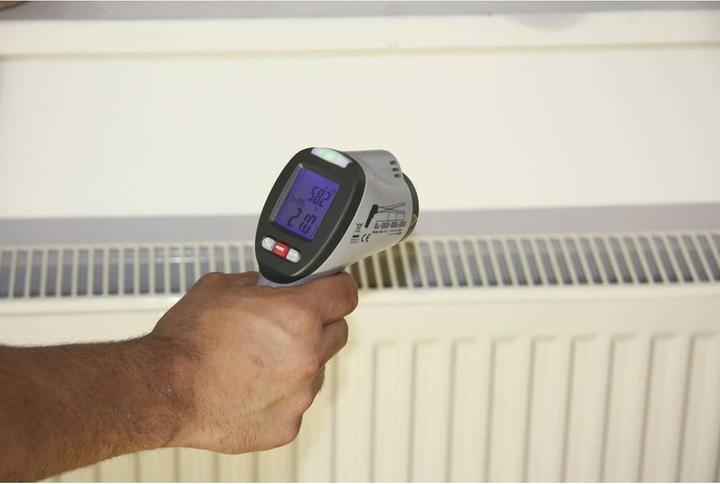

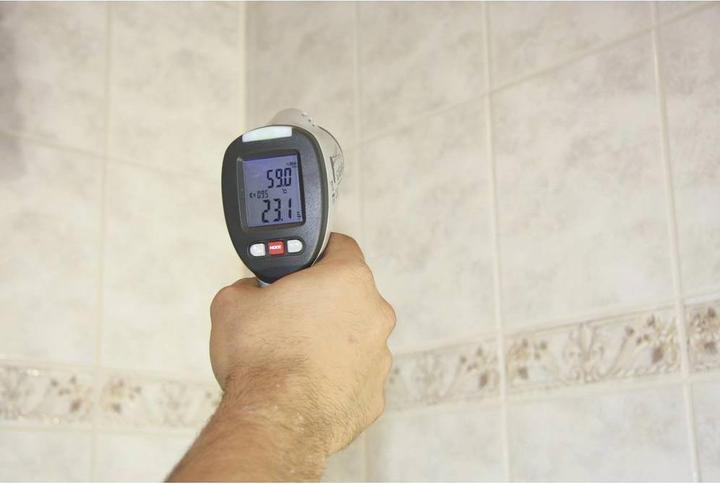

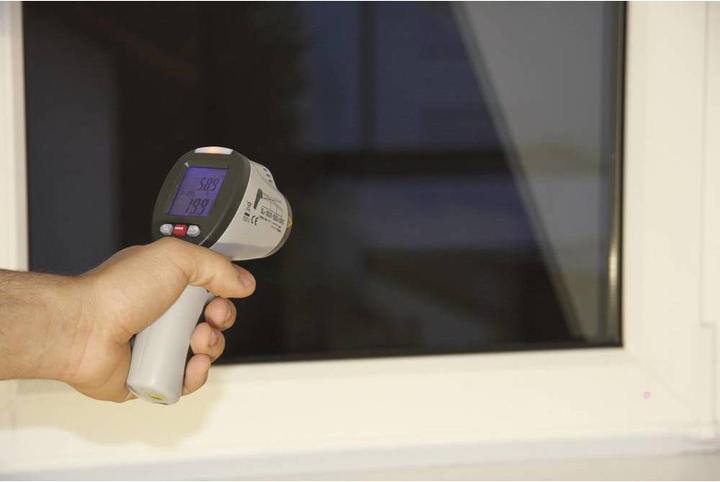

Non-contact IR temperature measurement. The integrated IR thermometer enables non-contact measurement of the surface temperature. The non-contact measuring method means that even objects that are difficult to access or dangerous to touch can be measured. Two laser points indicate the diameter of the measuring cone, making it easier to guide the target.

IR measuring optics 20:1. The specification refers to the ratio of distance to the size of the measuring spot. The greater this ratio, the more precisely a measuring point can be detected at the same distance.
