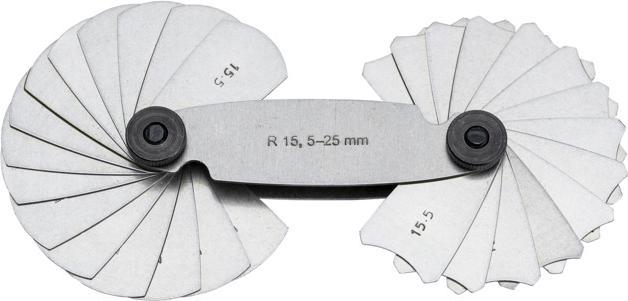

Vogel Radius template

2Ratings
Delivered between Mon, 7.9. and Wed, 9.9.
Only 3 pieces in stock at supplier
Free shipping starting at 50.–

Product details

The Vogel radius template is a precise tool specifically designed for checking raised and recessed curves. It is made of high-quality steel and offers a variety of concave and convex gauge sheets that allow for finely cut radius shapes. With a total of 17 sheets, the template covers a slope of 1 to 3 mm in 0.25 mm increments, followed by 0.5 mm increments. Additionally, it includes 16 sheets with a uniform slope of 0.5 mm and 15 sheets that measure radii from 15.5 to 20 mm in 0.5 mm and 1 mm increments. This tool is ideal for professionals who require precise measurements in metalworking or mechanical engineering.

  • High-quality steel construction for durability and precision
  • 17 sheets with variable slopes for versatile applications
  • Concave and convex gauge sheets for different radius shapes
  • Suitable for professional use in metalworking and mechanical engineering.

Key specifications

Measuring unit
mm

General information

Item number
15299454
Manufacturer
Vogel
Category
Gauge
Manufacturer No.
472107 M1285-2142
Release date
18.3.2021

Material

Material group
Metal
Material
Steel

Measuring tool properties

Measuring unit
mm
gradient
0.50 mm

Voluntary climate contribution

CO₂ emissions
0.23 kg
Climate contribution
CHF 0.11

Product dimensions

Weight
106 g

Package dimensions

Length
9.50 cm
Width
6.70 cm
Height
2.30 cm
Weight
108 g

30-day right of return
24 Months Warranty (Bring-in)
