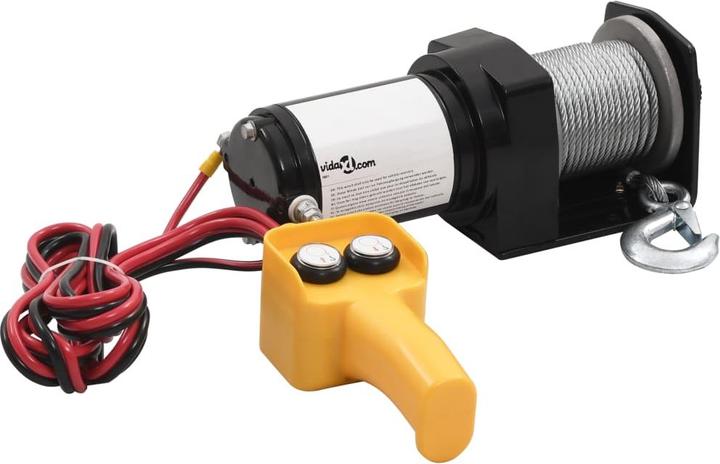

VidaXL Electric winch

2Ratings
BrandMore from VidaXL
Delivered between Thu, 11.9. and Fri, 12.9.
More than 10 pieces in stock at third-party supplier
Supplied by
VidaXL CH
free shipping

Product details

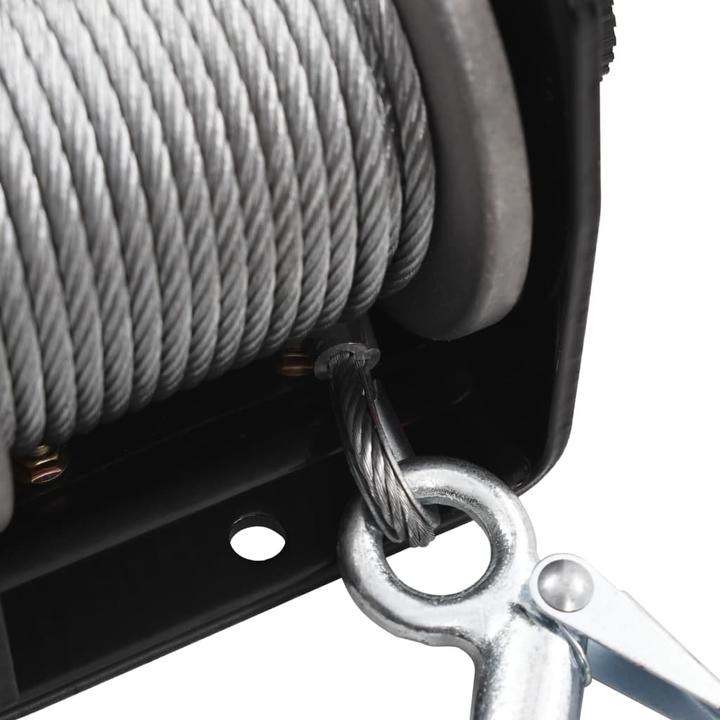

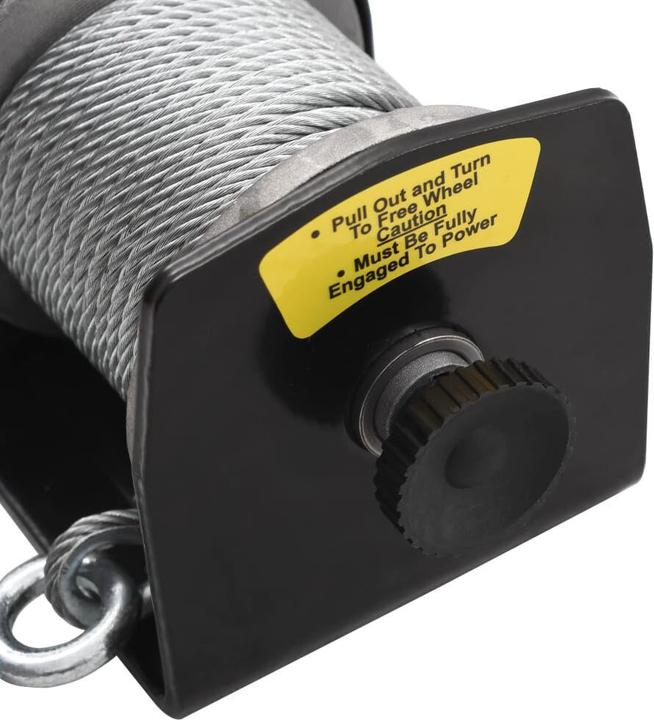

This electric winch is specially designed for vehicle recovery. The free spool clutch is operated by a pull and turn knob, which disengages the gearbox to allow the wire rope to be pulled out without using electric power. A tension plate reduces backlash and snaring when pulling out the wire rope. Equipped with a permanent motor, this device is suitable for intermittent duty applications.

Delivery includes:

  • 1 x winch

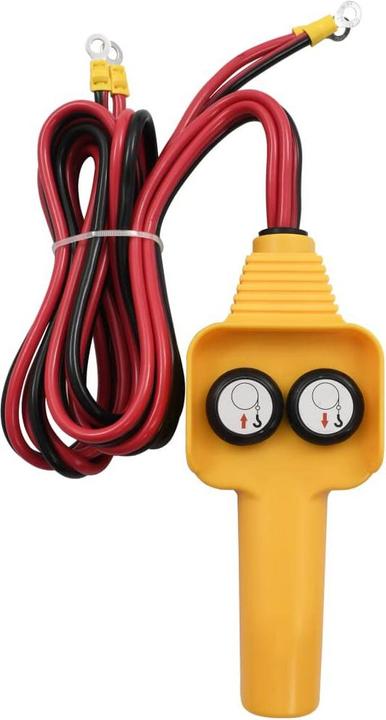

  • 1 x wire remote control
  • 1 x hook with cable
  • Power cable
  • Mounting accessories such as screws and nuts.

Specifications:

  • Max. line pull: 907 kg
  • Max. current: 120 Amp
  • Motor: 1.0 HP, DC 12 V permanent magnet
  • Gear ratio: 153:1
  • Gearing: Differential planetary
  • Wire rope length: 15 m
  • Weight: 5.5 kg
  • Dimensions: 285 x 105 x 105 mm (L x W x H)
  • Drum diameter: 31.75 mm
  • Control: Wire remote control switch.

Key specifications

Load capacity
907 kg
Power supply
Electrical connection
Weight
5.50 kg
Item number
23375420

General information

Manufacturer
VidaXL
Category
Hoists + workshop cranes
Manufacturer no.
B00O1QI7OK
Release date
16.6.2022

Material

Material
Plastic
Material group
Plastic

Rope hoist + workshop crane Features

Load capacity
907 kg

Energy supply

Power supply
Electrical connection

Mains operation Features

Cable length
15 m

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
28.50 cm
Width
10.50 cm
Height
10.50 cm
Weight
5.50 kg
