Victron Energy Orion IP67 24/12-20A

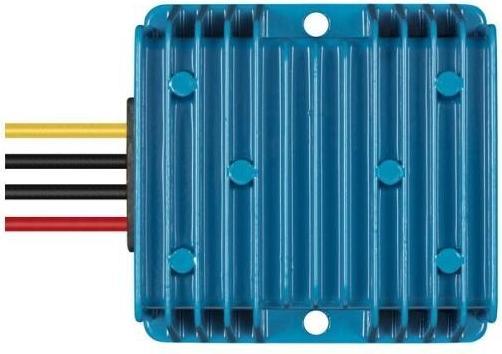

Fully encased: waterproof, shockproof, and fire retardant. Water, oil, or dirt cannot damage the Orion IP67 DC-DC converter. The housing is made of cast aluminum, and the electronics are coated with resin.

Extra-long input and output cables: Thanks to the 1.8 m long cables, no additional extension cables are needed in most cases. This supports safe operation in an area where the IP67 degree of protection is required.

Wide input voltage range: With an input voltage range of 15 to 40 volts, stable output is ensured during voltage surges or undervoltages caused by other devices connected to the same battery.

Overheat protection: Can be used in a hot environment such as an engine room.

Specifications:

• Orion IP67 24/12-20
• Input voltage range: 15-40 VDC
• Shutdown due to undervoltage: 13 V
• Restart after undervoltage: 14 V
• Quiescent current at 24 V: 50 mA
• DC output voltage: 12 V ± 3%
• Maximum uninterruptible output current: 20 A
• Efficiency: 93%
• Hum sp. & noise: 75 mV pp
• Operating temperature range (reduction in output 3% per °C above 40°C): -20 to +70°C (full rated output up to 40°C)
• Overload protection: Hiccup mode, restarts after fault is cleared
• Short-circuit proof: Yes
• Reverse polarity protection: With external fuse or circuit breaker (not supplied)

Housing:

• Material & color: Aluminum (blue RAL 5012)
• Protection class: IP67
• DC connection: Two input and two output cables, length 1.8 m
• Cable diameter, input: 2.6 mm² (15 AWG)
• Cable diameter, output: 2.6 mm² (15 AWG)
• Weight: 300 g

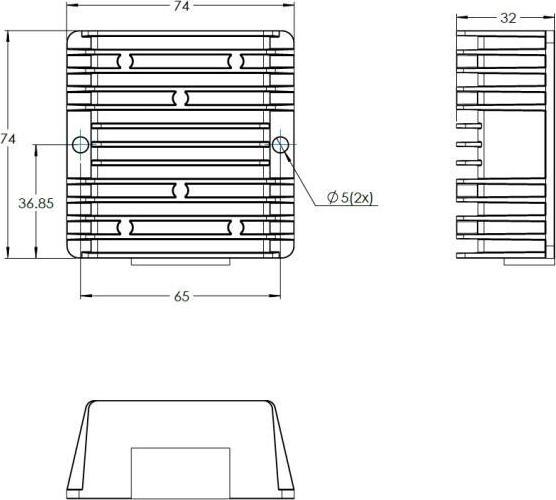

• Dimensions (H x W x D in mm): 74 x 74 x 32 mm

Data sheet instructions.
