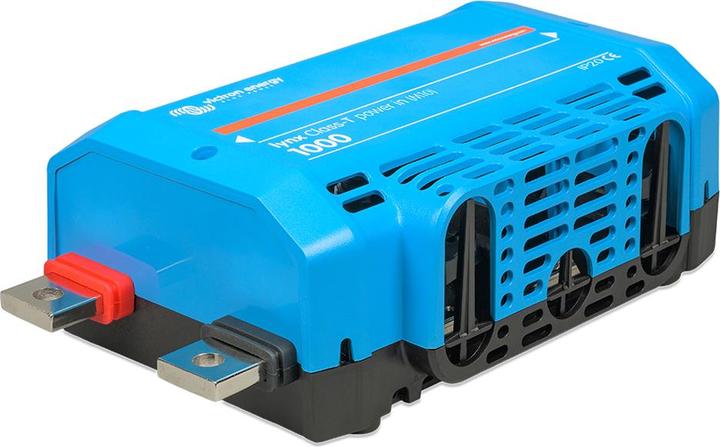

Victron Energy Lynx Class-T Power In
Supplied by
free shipping
The Lynx Class-T Power In connects and secures up to two strings of lithium batteries. It has a positive and negative busbar, connections for two Class-T fuses and a connection for earthing the DC system. The Class T fuses, available in 225 A, 250 A, 350 A and 400 A versions, are sold separately. For installations with three or more strings of lithium batteries, you can use multiple Lynx Class-T modules. As a core component of the Lynx distribution system, the Lynx Class-T integrates seamlessly with all other M10 Lynx products. Voltage range: 9 - 60 VDC. Rated current: 1000 ADC uninterruptible. Busbar connections: M10. Fuse connections: 3/8". Housing material: ABS. Housing dimensions: 279 x 169 x 97 mm. Device weight: 2.1 kg. Busbar material: tin-plated copper. Dimensions of the busbar (hxw): 8 x 30 mm. Operating temperature range: -40 °C to +60 °C. Storage temperature range: -40 °C to +60 °C. Humidity max.: 95 % (non-condensing). Protection class: IP20.
Nominal voltage | 60 V |
Nominal current | 1000 A |
Safety function | Overload |
Item number | 44917229 |
Manufacturer | Victron Energy |
Category | Charge controller |
Manufacturer no. | LYN060404010 |
Release date | 11.6.2024 |
Sales rank in Category Charge controller | 16 of 392 |
Colour | Blue |
Exact colour description | Blue |
Material group | Metal, Plastic |
Material | ABS |
Nominal voltage | 60 V |
Nominal current | 1000 A |
Safety function | Overload |
Protection type (IP code) | IP20 |
Country of origin | Germany, India |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 9.70 cm |
Width | 16.90 cm |
Height | 27.90 cm |
Weight | 2100 g |
Length | 41 cm |
Width | 18 cm |
Height | 12 cm |
Weight | 3 kg |
