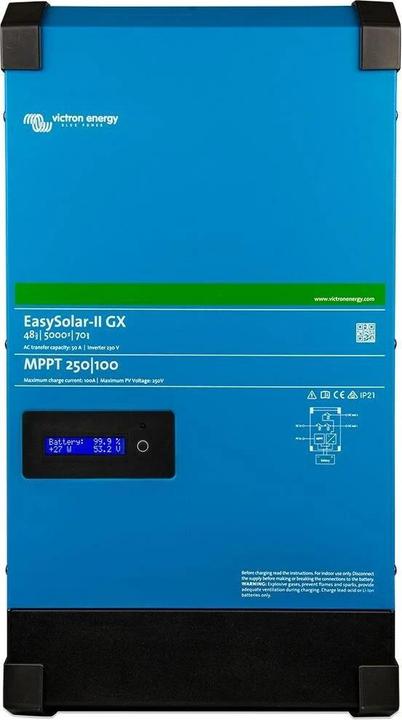

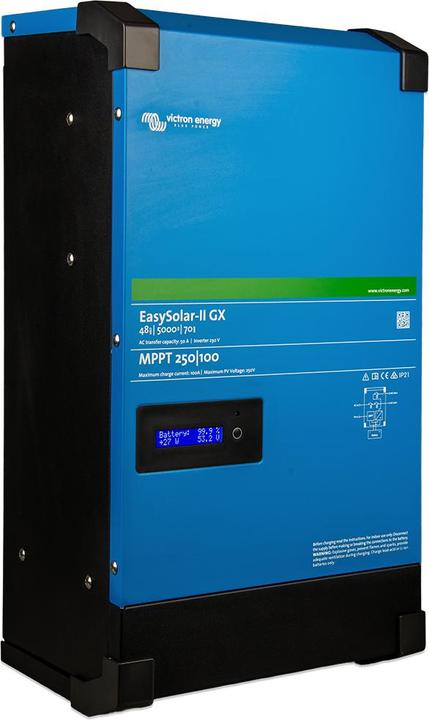

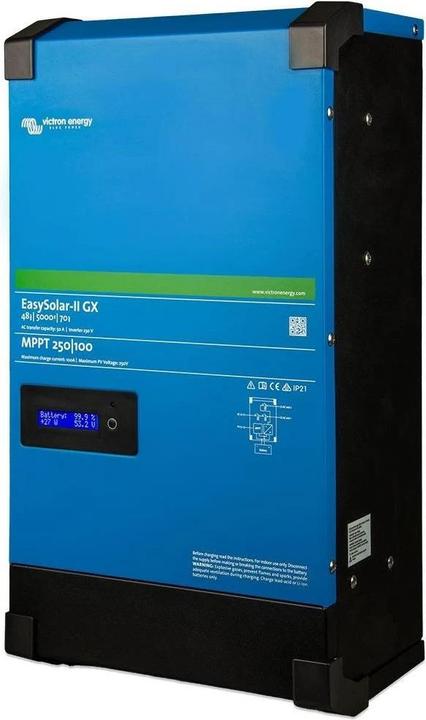

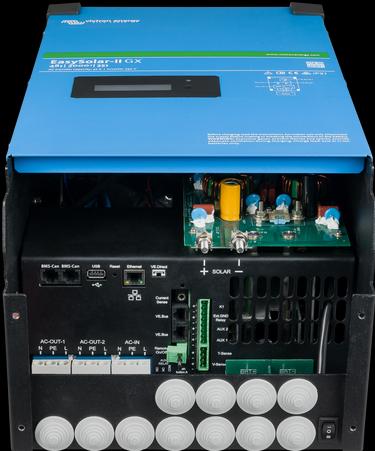

Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX

The complete solution for solar power

The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT-Tr solar charge controller
• A GX device with a 2x 16 character display

These elements are pre-wired and integrated into a single unit. This significantly simplifies most installations, saving time and money.

Display and Wi-Fi
The display shows parameters for the battery, inverter, and solar charge controller. Parameters can be accessed using a smartphone or another Wi-Fi-enabled device. Additionally, Wi-Fi can be used to set up the system and change settings.

Solar Charge Controller
The DC output of the SmartSolar MPPT is connected in parallel to the DC input of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

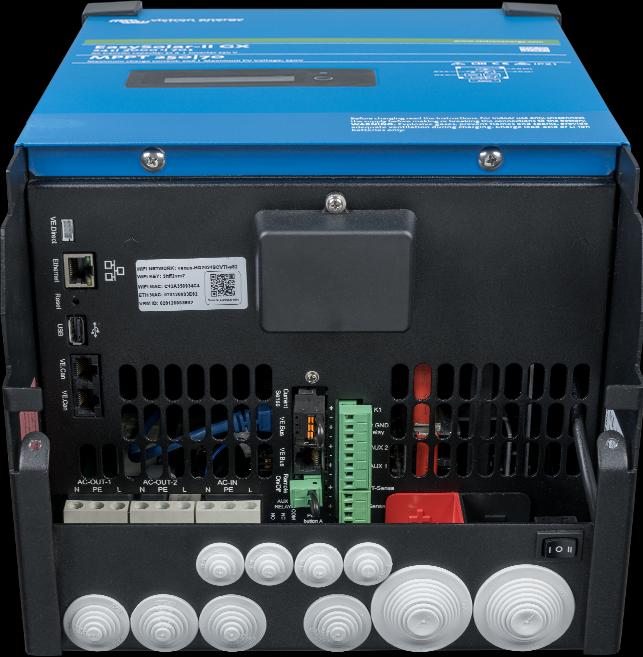

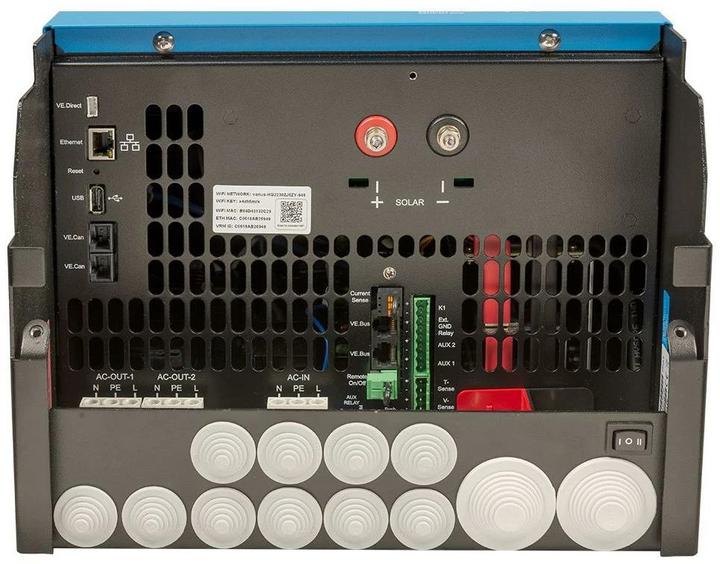

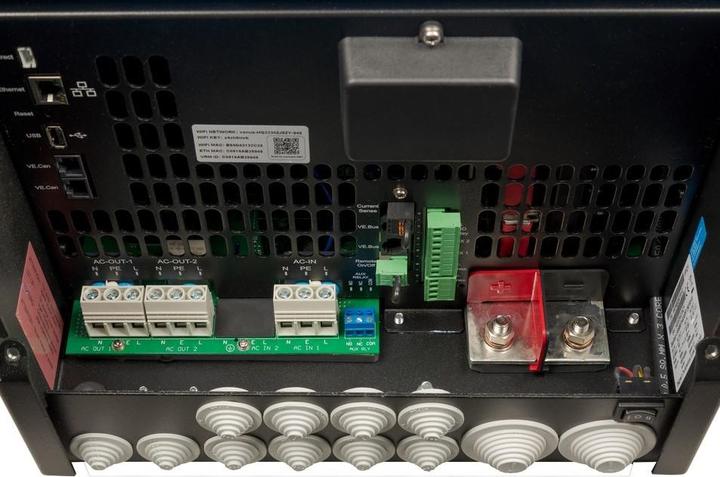

GX Device / Module
The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible battery managed via the CAN bus. Note that this is not a VE.Can compatible connection.
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with one VE.Bus and one VE.Direct connection each.

How is the GX module connected to the internet and linked to the VRM portal, and what settings are required?.
