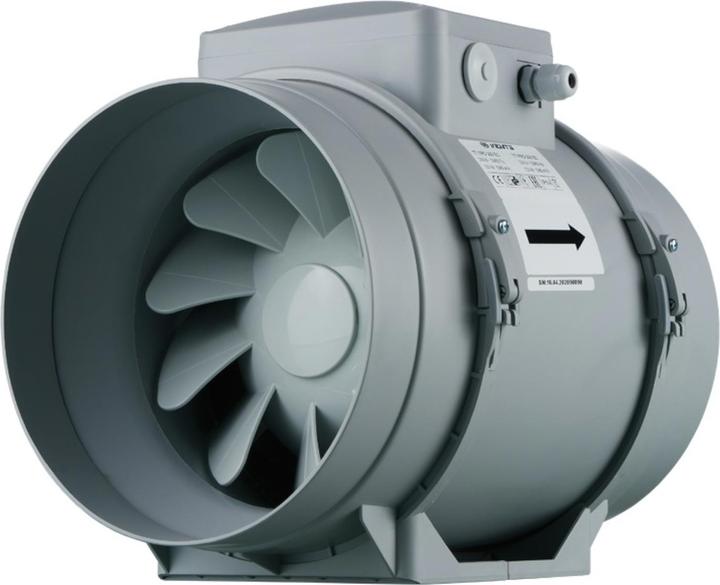

Vents TT Pro 200
More than 10 items in stock at third-party supplier
Product details
Dimensions and technical details 220-240 Volt ~ 50/60 Hertz Various options available: TT Pro 200 V: integrated speed control (2 speeds / off) TT Pro 200 T: adjustable time delay (2 - 30 minutes), no speed controller TT Pro 200 U: integrated speed control (2 speeds / off) with electric thermostat and temperature sensor inside the duct. Temperature-controlled operation. Lead wire with IEC C14 plug. Housing colour: grey Housing material: robust, flame-retardant polypropylene Nominal size: 200 mm Wattage min./max.: 76 / 108 W Power consumption min./max.: 0.34 / 0.48 A Revolutions per minute min./max.: 1915 / 2380 Airflow rate min./max.: 830 / 1040 m³/h Sound pressure Lp-3m min./max.: 45 / 52 dB(A) Max. temperature for continuous operation: 60°C IP code: IPX4 Weight: 3.95 kg Thermal overload protection Ball-bearing motor Mounting options: any position Motor unit can be removed quickly a.
Airflow | 1040 m³/h |
Suitable for pipe diameter | 200 mm |
Power | 108 W |
Item number | 17559056 |
Manufacturer | Vents |
Category | Ventilation fan |
Manufacturer no. | TT Pro 200 V |
Release date | 29.10.2021 |
Colour | Grey, Silver |
Exact colour description | Titanium Grey, Titanium Silver |
Material group | Plastic |
Material | Plastic |
Airflow | 1040 m³/h |
Noise emission | 52 dB |
Suitable for pipe diameter | 200 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Power | 108 W |
Country of origin | Ukraine |
CO₂-Emission | |
Climate contribution |
Length | 29.55 cm |
Width | 23.90 cm |
Height | 26.10 cm |
Weight | 4000 g |
Length | 30 cm |
Width | 25 cm |
Height | 30 cm |
Weight | 4.50 kg |
