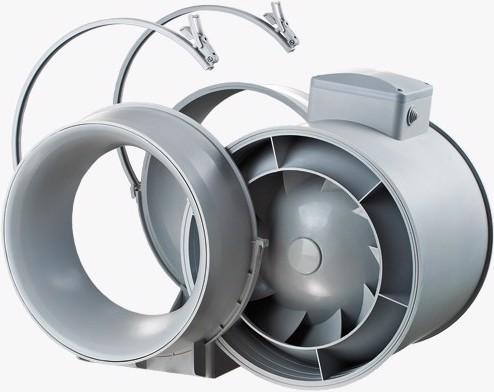

Vents TT Pro 160
Delivered between Mon, 29.6. and Tue, 30.6.
6 pieces in stock at third-party supplier
6 pieces in stock at third-party supplier
Supplied by
Creoven CH
free shipping
Product details
Dimensions and technical details:
- Voltage: 220-240 V ~ 50/60 Hz
- Housing colour: Grey
- Housing material: Robust, flame-retardant polypropylene
- Nominal size: 160 mm
- Wattage: 50 W
- Current consumption: 0.22 A
- Revolutions per minute: 2620
- Airflow rate: 565 m³/h
- Sound pressure Lp-3m: 56 dB(A)
- Height: 247 mm
- Width: 220.1 mm
- Length: 289 mm
- Diameter duct connection: 158 mm
- Max. temperature for continuous operation: 60°C
- IP code: IPX4
- Weight: 3.25 kg
- Adjustable shut-off timer (2 - 30 min): Fan turns off after expiration of the pre-set time
- Ball-bearing motor
- Mounting options: Any position
- Motor unit can be removed quickly and easily for cleaning and maintenance
- Application: Ventilation systems requiring high pressure and low noise level
- Ideal for air extraction in damp rooms of residential and commercial properties.
Ventilation fan type | Tube fan |
Max. Air flow rate | 565 m³/h |
Suitable for pipe diameter | 160 mm |
Power consumption | 50 W |
Item number | 17285197 |
Manufacturer | Vents |
Category | Ventilation fan |
Manufacturer No. | TT Pro 160 T |
Release date | 29.10.2021 |
Sales rank in Category Ventilation fan | 100 of 2429 |
Colour | Grey, Silver |
Exact colour description | Titanium Grey, Titanium Silver |
Material group | Plastic |
Material | Plastic |
Ventilation fan type | Tube fan |
Max. Air flow rate | 565 m³/h |
Noise emission | 46 dB |
Suitable for pipe diameter | 160 mm |
Power supply | Electrical connection |
Mains voltage | 220 - 240 V |
Power consumption | 50 W |
Country of origin | Ukraine |
CO₂ emissions | 10.14 kg |
Climate contribution | CHF 0.24 |
Length | 28.90 cm |
Width | 22 cm |
Height | 24.70 cm |
Weight | 3250 g |
