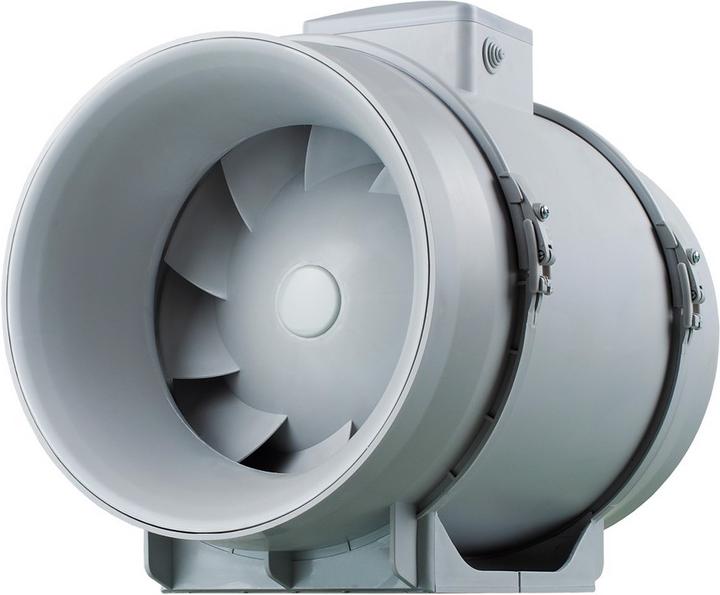

Vents TT Pro 125

Dimensions and technical details:

• Voltage: 220-240 V ~ 50/60 Hz
• Housing colour: grey
• Housing material: robust, flame-retardant polypropylene
• Nominal size: 125 mm
• Wattage: min. 25 W / max. 30 W
• Current consumption: min. 0.11 A / max. 0.13 A
• Revolutions per minute: min. 1630 / max. 2300
• Airflow rate: min. 240 m³/h / max. 350 m³/h
• Sound pressure Lp-3m: min. 29 dB(A) / max. 34 dB(A)
• Height: 226 mm
• Width: 195.6 mm
• Length: 258.5 mm
• Diameter duct connection: 123 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 2.15 kg

Features:

• Integrated speed control (2 speeds / off) with electric thermostat and temperature sensor inside the duct for temperature-controlled operation.
• Lead wire with IEC C14 plug.
• Ball-bearing motor.
• Mounting options: any position.

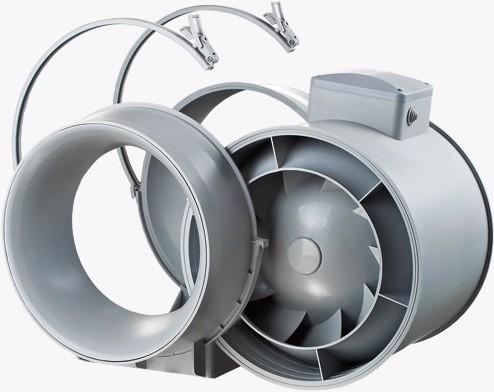

• Motor unit can be removed quickly and easily for cleaning and maintenance.

Application:

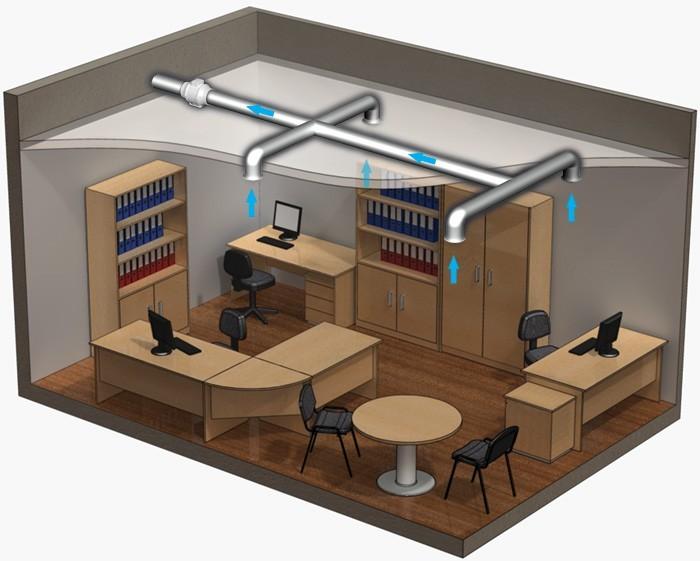

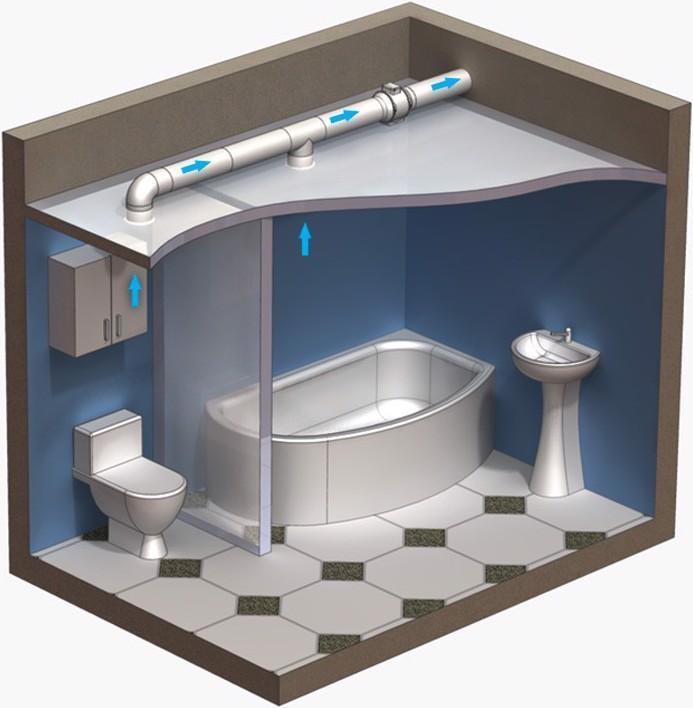

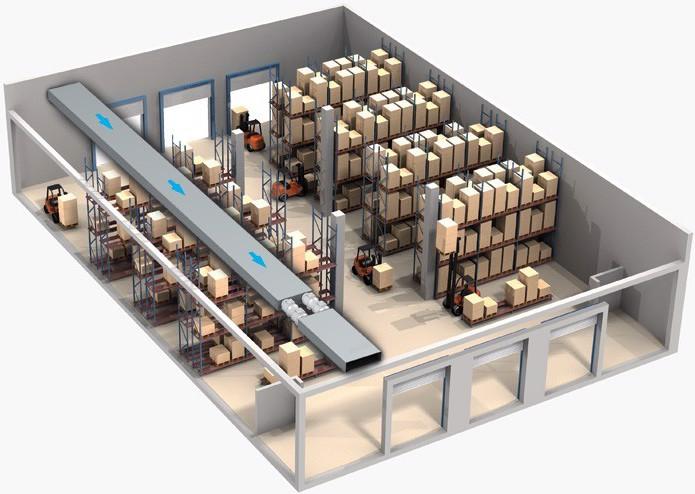

Ideal for ventilation systems requiring high pressure and low noise level, particularly for air extraction in damp rooms of residential and commercial properties.
