Urmet GB-140-167 Easydoor Controller

Access control system Easy Door Controller.

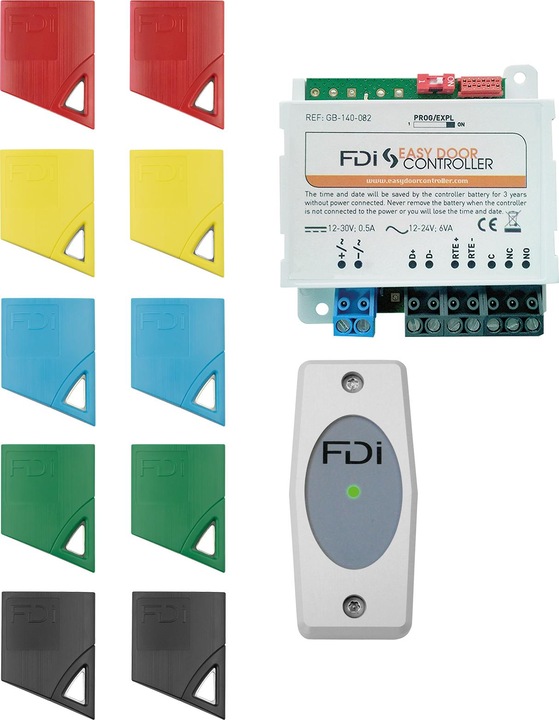

Easy Door Controller Set AP VA V2.

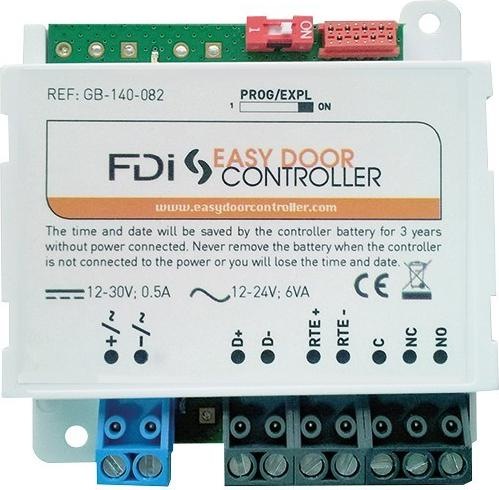

The Easy Door Controller system is a user-friendly, easy-to-install and configure access control system. The controller can be used as a stand-alone variant for a single door or combined with multiple controllers to form a virtual network. In the stand-alone variant, the controller manages 1500 keys, while in the virtual network, each controller can manage up to 2000 keys. Adding keys is done via a master key. It utilizes 13.56 MHz MIFARE® technology. Only two wires are needed from the controller to the reader.

The vandal-proof reader AP VA V2 for surface mounting operates with 13.56 MHz technology. It can be connected to the Ipassan controller or expansion module for 2 doors, as well as to the Easy Door Controller. The reader requires only 2 wires, with power supply and data transmission running over the 2-wire connection, which can be up to 100 m long with shielded cable. An LED visualizes and a buzzer acoustically signals the authorization status of the system.

Proximity key set 13.56 MHz MIFARE® technology, compatible with all Ipassan and Easy Door Controller readers, as well as the eLock profile cylinder, featuring a loop for keychain attachment with an engraved serial number, available in colors: Red, Blue, Green, Yellow, Black.
