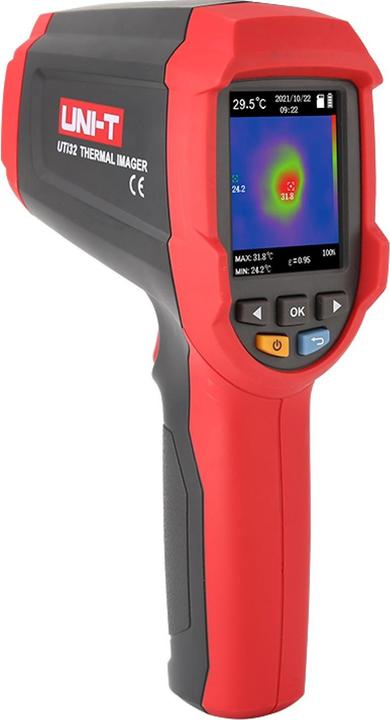

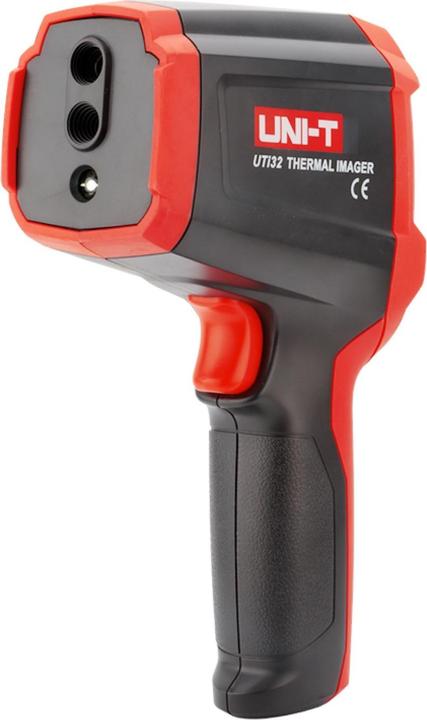

Uni-T UTi32 High Temperature Thermal Imaging Camera
6 pieces in stock at third-party supplier
Product details
The UTi32 professional thermal imaging camera from UNI-T is a powerful and reliable tool specifically designed for high-temperature inspections. This camera is ideal for applications in industries such as metal processing, glass and porcelain manufacturing, petrochemicals, and metallurgy. It can quickly capture temperatures ranging from -20℃ to 1000℃ and automatically track and alert the highest and lowest points. The UTi32 is a portable and lightweight thermal imaging camera featuring a 640x480 pixel digital camera that supports three image modes: thermal image, visual image, and fusion. With PC software analysis, the captured images can be further analyzed and evaluated. The camera boasts a long battery life of over 7 hours, ensuring it won't fail during inspections.
Features:
- Automatic tracking and alarm for high/low points
- Support for PC software analysis
- Portable and lightweight
- Equipped with LED light
Technical Details:
- Manufacturer: UNI-T
- Manufacturer SKU: UTi32
- Infrared resolution (pixels): 32×32
- Digital camera resolution: 640×480
- Spectral range: 8~14µm
- Emissivity: 0.01~1.00 adjustable (0.95 standard)
- Display: 2.4″ IPS (480×320)
- Field of view (FOV): 30°×30°
- Color palettes: 3 (Iron bow, Rainbow, Black hot)
- Image modes: Thermal image, Visual image, Fusion
- Thermal sensitivity (NETD): 0.15°C
- Focus: Fixed focus
- Temperature measurement range: -20°C ~ 1000°C
- Accuracy: ±2℃ or ±2%, whichever is greater
- Hi/Lo temperature alarm: Symbol
- Battery: Fixed Li-ion battery (3.7V 2600mAh)
- Battery operating time: ≥7 hours
- USB: Type-C
- Storage: 16GB Micro SD card
- Image/Video storage format: BMP
- Certifications: CE, UKCA, FCC, RoHS
- Software analysis: PC
- Dimensions: 205 x 124 x 65mm
- Weight: 660g
Package Includes:
- 1x UNI-T UTi32 high-temperature thermal imaging camera
- 1x Micro SD card
- 1x Type-C USB cable
- 1x English manual.
Image resolution | 640 x 480 pixels |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 1000 °C |
Thermal imaging camera type | Hand-held thermal imaging camera |
Item number | 25046561 |
Manufacturer | Uni-T |
Category | Thermal imaging cameras |
Manufacturer no. | B0BL7RN5GW |
Release date | 6.4.2023 |
Thermal imaging camera type | Hand-held thermal imaging camera |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 1000 °C |
Measurement accuracy | 2 °C |
Thermal sensitivity (NETD) | 0.15 mK |
Horizontal field of view | 30° |
Focus type | Manual focus |
Image sensor resolution | 307200 Pixels |
Image resolution | 640 x 480 pixels |
Interfaces / communication module | USB |
USB connector type | USB-C |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Battery voltage | 3.70 V |
Battery life | 7 h |
Number of batteries | 1 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x English manual, 1x Micro SD card, 1x type c USB cable, 1x UNI-T UTi32 high temperature thermal imaging camera |
Length | 6.50 cm |
Width | 20.50 cm |
Height | 12.40 cm |
Weight | 660 g |
