Product details

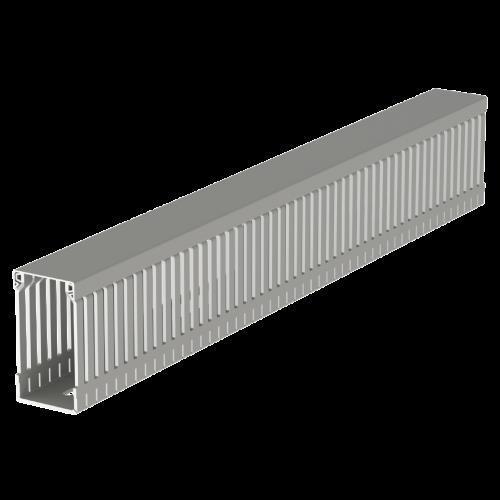

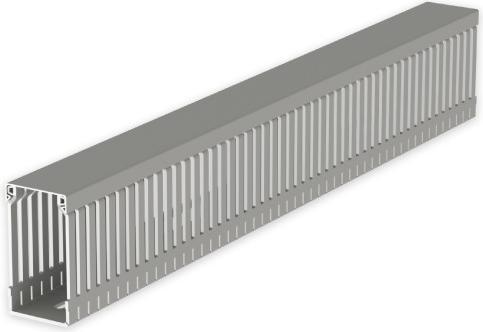

Unex Wiring Duct Gray 80.40.77
Manufacturer: Unex
Description: Gray Wiring Duct RAL 7030
Type: 80.40.77
Material: Polyvinyl Chloride (PVC)
Height: 80 mm
Width: 43 mm
Length: 2000 mm
Diameter: 4.2 mm
Slot Distance: 6 mm
Slot Width: 4 mm
Side Wall Design: Slotted
Halogen-Free: No
Self-Extinguishing: Yes
Flexible: No
Usable Cross Section: 2874 mm²
Mounting Type: Base Hole
With Top Cover: Yes
Color: Gray
RAL Number: 7030
Unex Wiring Duct Gray 80.40.77: Additional Details
For guiding cables in control and data cabinets. Installation is also possible for suspended mounting. Insulating material. Delivery length: 2 m. Color: Gray. Fire Safety: Glow Wire Test 960 °C non-flame propagating according to EN 50085-2-3:2010. Convenient installation and maintenance. Easy assembly and disassembly of the cover. Operational safety and cost reduction: without sharp edges. Side flaps with great flexibility and the ability to bend or break out. The side flaps do not injure hands or cables.
