Turck Opto-Sensor Q20PRQ5

Manufacturer: Turck
Designation: Opto-Sensor
Type: Q20PRQ5 One-way Light Barrier
Rated Switching Distance: 12000 mm
Max. Switching Distance: 12000 mm
Electrical Connection Type: M12 Connector
Switch Output Type: PNP
Switch Function Type: Changeover (NO/NC)

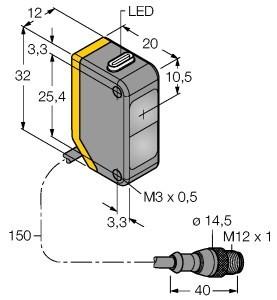

Housing Design: Rectangular
Sensor Width: 12 mm
Sensor Diameter: 0 mm
Sensor Height: 32 mm
Sensor Length: 20 mm
Material of Optical Surface: Plastic
Material of Housing: Plastic
Min. Reflector Distance: 0 mm
Ambient Temperature: -20 to 60 °C
Response Time: 1 ms
Switching Frequency: 600 Hz
Sensor Wavelength: 655 nm
Cable Jacket Material: Polyvinyl Chloride (PVC)
Suitable for Safety Functions: No
Protection Class (IP): IP67

Turck Opto-Sensor Q20PRQ5: Additional Details
Opto-Sensor, one-way light barrier (receiver), cable with connector, PVC, 150 mm, M12 x 1, 4-pole, protection class IP67, operating voltage: 10 to 30 VDC, PNP switch output, changeover, LED visible all around, max. range: 12000 mm, EAN: 0662488782030.

Key specifications

type of sensor
Optical
Range
12 m
Item number
36815908

General information

Manufacturer
Turck
Category
Motion sensors
Manufacturer no.
3078203
Release date
28.6.2023

Material

Material group
Plastic
Material
Plastic

Motion sensor properties

type of sensor
Optical
Range
12 m
Protection type (IP code)
IP67

Power supply

Output voltage
30 V

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
150 mm, 4-pole, Cable with connector, Changer, LED visible all round, M12 x 1, max. reach: 12000 mm, Operating voltage: 10 30 VDC, Opto-sensor, PNP switching output, Protection class IP67, PVC, Through-beam sensor (receiver)

Product dimensions

Length
2 cm
Width
1.20 cm
Height
3.20 cm
