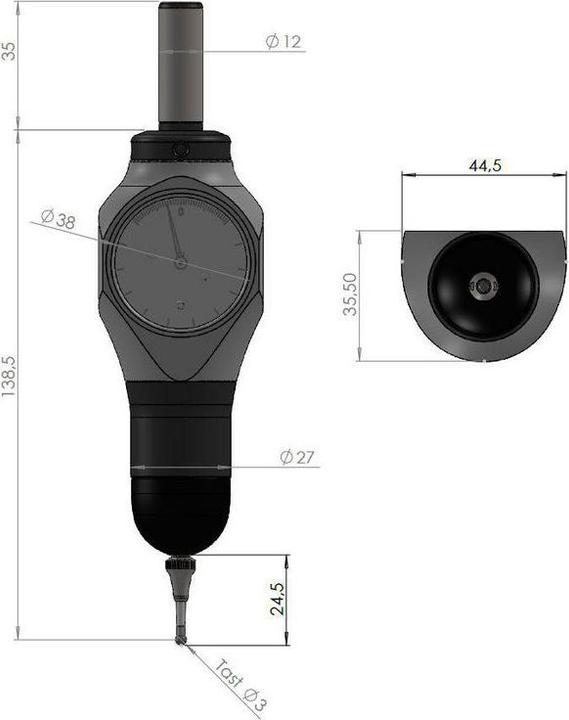

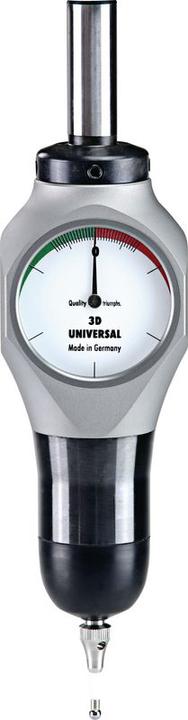

Tschorn Edge Finder Type 3D Universal

The TSCHORN Edge Finder Type 3D Universal is a high-precision measuring tool specifically designed for determining workpiece zero points and length measurements in all axis directions (X/Y/Z). It is ideally suited for use on milling machines, lathes, and other machining centers. The user-friendliness and high accuracy of this probe enable optimal alignment of the workpiece, resulting in significant time savings and improved machining quality. The edge finder is equipped with a cylindrical shank and an analog display. Additionally, it features integrated protective stops that prevent severe damage in the event of a crash, thereby extending the device's lifespan. With an IP67 waterproof rating, the probe can be reliably used under demanding conditions. Each device comes with an individual serial number and a calibration certificate that confirms the accuracy and reliability of the probe. The included ceramic probe tip Ø3 ensures precise and repeatable measurements.

• Precise measurements in all axis directions (X/Y/Z)
• Integrated protective stops for maximum safety
• Waterproof according to IP67 for demanding conditions
• Individual serial number for complete traceability.
