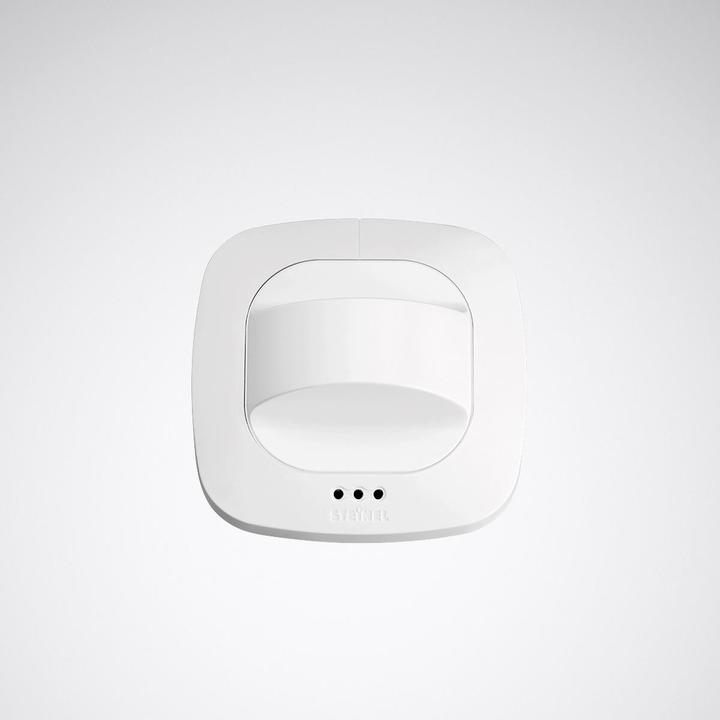

Trilux TRIL light sensor
10 mIn Detail
LiveLink gang sensor with DUAL HF technology, dual directional characteristics, and DALI interface for connection to a LiveLink control unit for daylight-dependent regulation and presence detection. It features an integrated light sensor for daylight-dependent control, as well as two built-in sensors for presence detection. Constant light regulation with a shutdown function when sufficient daylight is available. Presence detection is temperature-independent, with a range of up to 10 m in each direction along one axis. Power supply via the DALI interface of the control unit. Selectable shutdown delay time, either in automatic mode (automatically on, automatically off) or semi-automatic mode (automatically off, manually on). Special IQ mode for automatic adjustment of the after-run time based on room usage. Continuously adjustable range setting. Temperature range: -25 °C to +55 °C. The presence sensor is ideally suited for detecting radial movement towards the sensor. Detection angle: 360° with a 140° opening angle, potentially through glass, wood, or lightweight walls. Detection range: maximum 10 m x 3 m in each direction, continuously electronically adjustable with a recommended mounting height of 2.5 m to 3.5 m ceiling height. Frequency range: 5.8 GHz. Transmission power: < 1 mW. Protection class IP20. Sensor suitable for ceiling-mounted installation in conjunction with standard hollow wall boxes. With special accessories, it is also suitable for surface-mounted installation. Number of occupied DALI participants: 7. No additional power connection required. Commissioning in conjunction with the LiveLink control unit via the LiveLink app using a graphical user interface. Adjustable parameters: setpoint for constant light regulation, shutdown delay time, semi/full automatic, activation of IQ mode, range setting, and range test. DALI 2 certified product.
