Topcon 555080 AT-B4A Automisches Nivelliergerät 24x

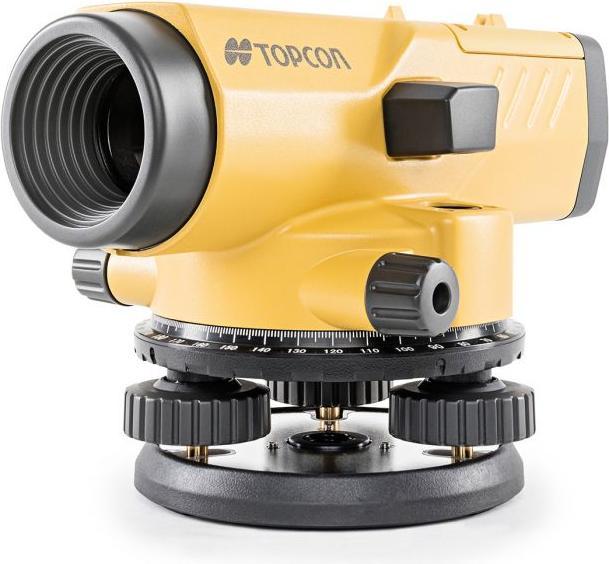

Topcon AT-B4A Automatic Level 24x + Tripod + Measuring Rod

Description
Precision from Topcon. All levels in the AT-B series feature a magnetically damped compensator and are highly resistant to cold, heat, and vibrations. Horizontal angles can be read directly in 1 gon or degree increments. The continuous fine adjustment allows for comfortable, precise aiming. Thanks to the carefully calibrated autocollimation, Topcon's AT-B series automatic levels are ideal for determining height differences on busy and noisy construction sites. The automatic levels with an IPX6 protection class are thus protected against strong water jets, rain showers, and even prolonged rainfall. The new housing design also protects against fogging of the optics and condensation inside the telescope.

Magnification 24×
Fast, accurate, and stable automatic compensation
Extremely short minimum distance: Focus from 20 cm
Reliability in all weather conditions
Fine adjustment via continuous drive

Technical Specifications
Effective lens diameter 32 mm
Magnification 24 x
Field of view (at 100 m) 1°25' (2.5 m)
Minimum focus / horizontal circle 0.2 m / 1° (1 g)
Compensator working range ±15'
Accuracy over 1 km double leveling 2.0 mm
Protection class IPX6

Scope of delivery
Transport case
Rain cover
Tripod 520066
Measuring rod 520054.
