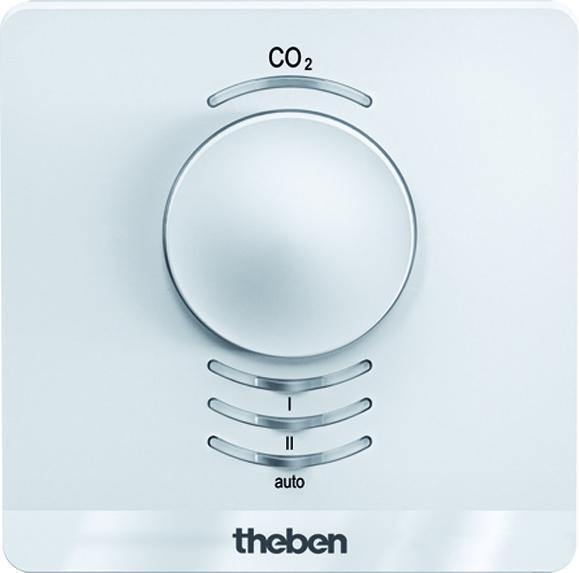

Room air sensor for controlling fans, measuring CO2 concentration, relative humidity, and temperature. It features a visual display using an LED traffic light system with adjustable thresholds. There are two CO2-controlled switching outputs for two-stage regulation, both in manual and automatic operation, as well as a switching status display. Three 0-10 V outputs are available for CO2, temperature, and relative humidity. Simple retrofitting of uncontrolled ventilation systems is possible. The green display indicates the first threshold, which can be set between 500 and 900 ppm, the yellow display indicates the second threshold, adjustable from 1100 to 1500 ppm, and the red display shows values above the second threshold. A suitable power supply for flush mounting is optionally available. This sensor is suitable for schools, kindergartens, offices, conference or meeting rooms, and living spaces.
Danger detector type | Carbon dioxide detector |
Alarm signal | Acoustic warning |
mounting style | Finery |
Power supply | Electrical connection |
Items per sales unit | 1x |
Documents | Technical data sheet.pdf |
Item number | 30580444 |
Manufacturer | Theben |
Category | Hazard detectors |
Manufacturer No. | 7160110 |
Release date | 19.4.2021 |
Exact colour description | White |
Colour | White |
Danger detector type | Carbon dioxide detector |
Alarm signal | Acoustic warning |
mounting style | Finery |
Application range | Indoor |
Additional properties | LED indication |
Power supply | Electrical connection |
Operating voltage | 24 V |
Smart home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 19.25 kg |
Climate contribution | CHF 0.46 |
Items per sales unit | 1x |
Scope of delivery | 1 |
Length | 3.10 cm |
Width | 8.90 cm |
Height | 8.90 cm |
Length | 10.60 cm |
Width | 10.60 cm |
Height | 10.80 cm |
Weight | 174 g |
How often does a product of this brand in the «Hazard detectors» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Hazard detectors» category returned?
Source: Digitec GalaxusVery simple, visually unappealing CO2 traffic light: only a small light strip. The red ventilation warning comes too late. Tip: Ventilate as soon as the orange signal appears.
