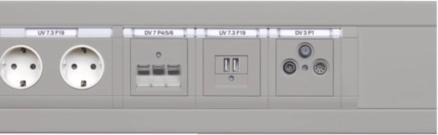

Tehalit Frame cover

Tehalit frame cover 50 modular GR0802B vws

Manufacturer: Tehalit
Designation: Frame cover 50 modular OT 80 halogen-free
Type: GR0802B vws
Top width: 80 mm
Length: 103 mm
Width of opening: 50 mm
Height of opening: 50 mm
Diameter of opening: 0 mm
Number of units: 1
Unit type: Units with central plate
Design: Smooth
Material: Plastic
Material grade: Other
Halogen-free: Yes
Surface protection: Untreated
Colour: Traffic white
RAL number: 9016
With protective film: No
Mounting type: Internal
Cut lamination: Yes
With labelling field: Yes
Protection class (IP): IP20
Impact resistance: IK07

Tehalit frame trim 50 modular GR0802B vws: further details
Frame trim 50 modular OT 80 halogen-free with labelling field in traffic white. Frame trim for sill trunking, modular bayable at a combination spacing of 71 mm, cut-flashing to trunking top section. Designed to accommodate central plates, covers, rockers, or adapter frames of installation switch ranges with dimensions 50 x 50 mm. Adapted to the outer contour of the parapet trunking to reduce dirt deposits and simplify cleaning. For use with attachable device boxes for sill trunking, with reduced installation depth for flush termination with the closure contour of the sill trunking. Can be combined with socket outlet cover for sill trunking via optional intermediate piece. Integrated labelling field for mounting on the installation device or the device box, compatible with 9 mm labelling tapes.
