TCS Video signal switcher

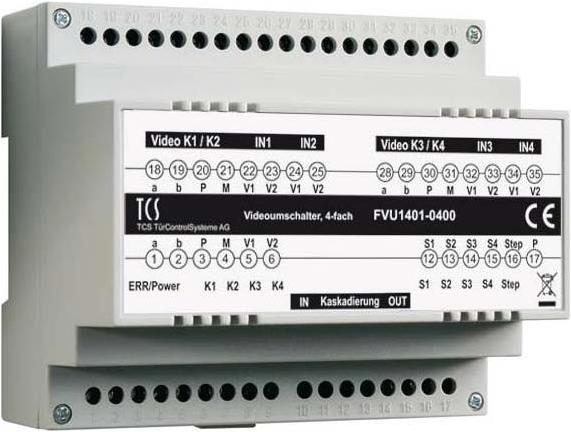

TCS Door Control Video Signal Switch FVU1401-0400

Manufacturer: TCS Door Control
Designation: 4-channel Video Signal Switch
Type: FVU1401-0400
Function: Switching
Installation Technology: Bus System
Material: Plastic
Interface Design: LAN
Mounting Type: DIN Rail
Width: 105 mm
Height: 90 mm
Depth: 70 mm
Width in Division Units: 6

Additional Details:
Switching the signal from the respective video outdoor station to the video indoor station during: incoming door calls, pressing the image button at the video indoor station, pressing connected switches, sending freely selectable control functions (using configuration software configo), sending freely selectable protocols (using configuration software configo), cascading capability of up to 16 devices, allowing a total of 64 video sources to be switched to one channel, connection possibility for switching devices that enforce the switching of a specific video source (sensor inputs), for switching up to four video sources per device to one video channel (from video outdoor stations or additional cameras to a video indoor station), for use in TCS video systems, for mounting in control cabinets, 3-wire technology required, optical fault signaling, supply voltage: +24 V plus/minus 8% (supply and control device), housing: modular housing 2 TE according to DIN 43880 for DIN rail according to DIN EN 60715 TH35, dimensions (in mm): H 114 x W 90 x D 70, permissible ambient temperature: +5 degrees C to +40 degrees C, input current: I(a) = 0.1 mA, Max. input current: I(Pmax) = 20 mA, EAN: 4035138021371.
