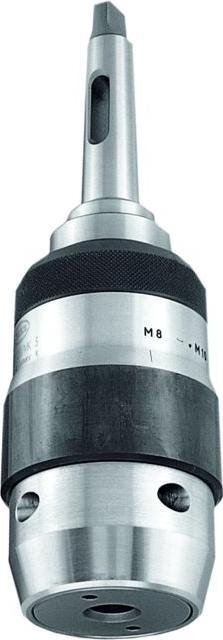

Tapping chuck type DSPL with shank

Execution: The double clamping is achieved through 3 clamping jaws that center the tap shank, and through 4 jaws that grip the square of the tap. The safety coupling prevents tool breakage when properly adjusted. Blind hole threads can be cut to the bottom. The pendulum mechanism compensates for alignment errors between the machine spindle and the workpiece. The elastic length compensation acts under pressure and tension. It prevents the thread from being damaged during manual or machine feed. Delivery includes: 1 clamping key. Use: For cutting internal threads on switchable drilling machines and turret lathes. Usable horizontally and vertically for right-hand threads.
