Swaytronic Solar panel flexible

100 W, 2.30 kg
Delivered between Mon, 16.3. and Tue, 17.3.
8 pieces in stock at supplier
free shipping

Performance5

Product details

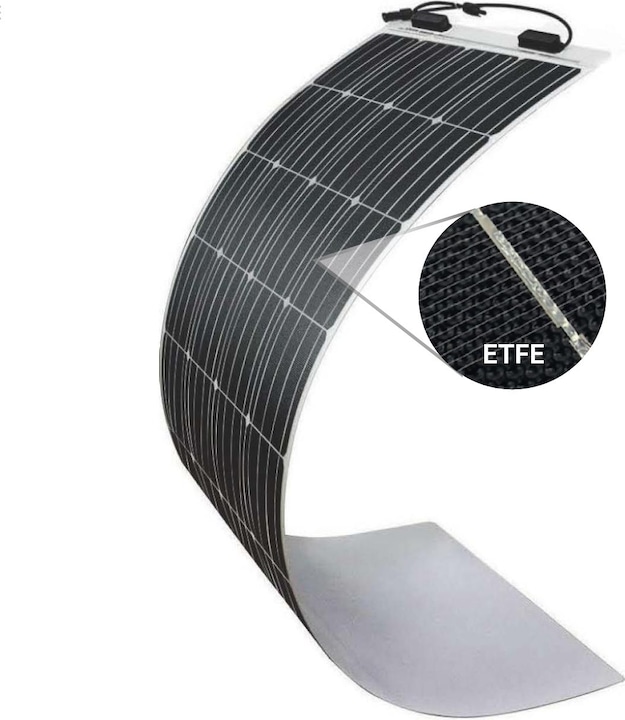

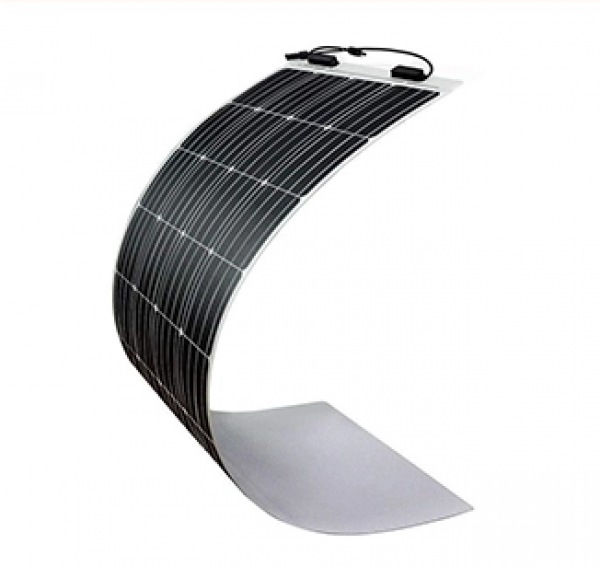

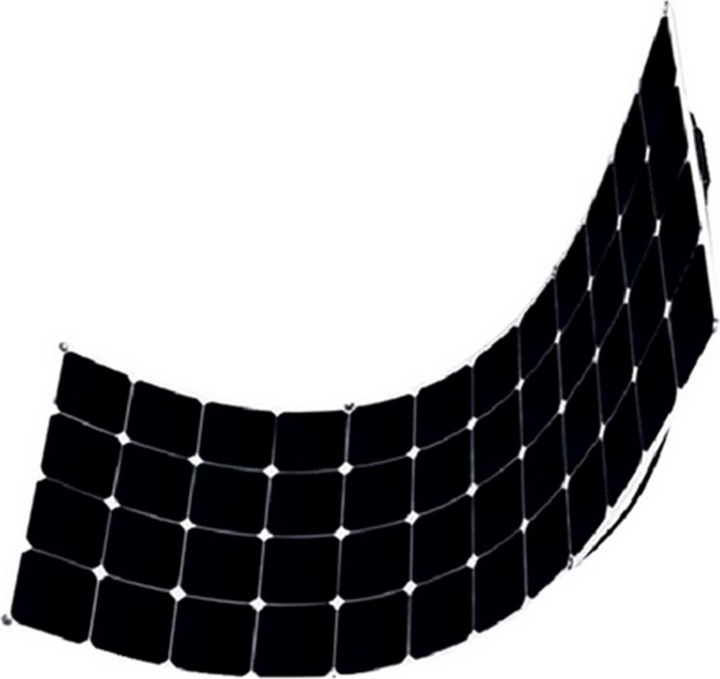

Advantages at a glance: Semi-flexible solar panel for both stationary and mobile use. Monocrystalline solar cells with a high efficiency of 21.6%. Low profile of 3 mm (without junction box). The semi-flexible solar panels from Swaytronic are equipped with monocrystalline solar cells that have a high efficiency of 21.6%. Due to their flexibility and low profile of 3 mm, Swaytronic solar panels can be easily mounted even in tight spaces and on curved surfaces (gluing/screwing). The application range includes both stationary and mobile areas. Suitable for caravans, boats, garden sheds, island systems, etc. The junction box is IP65 rated, making it dust-tight and protected against water jets from any angle. The connection cables are equipped with standard MC4-compatible connectors/couplings. Series connection of the panels up to 700 V is possible, and the solar panels can be connected in parallel to increase performance. In combination with a solar charge controller and a storage battery (LiFePO4) from Swaytronic, an autonomous energy system can be realized without extensive prior knowledge.

Key specifications

Solar panel type
Solar panel
Cell type
Monocrystalline
Nominal power
100 W
Length
120 cm
Width
54 cm
Documents
Technical data sheet.pdf

General information

Item number
13750672
Manufacturer
Swaytronic
Category
Solar panels
Manufacturer no.
7640182624965
Release date
16.11.2022

Colour

Colour
Black
Exact colour description
Black
Frame colour
White

Solar Technology properties

Solar panel type
Solar panel
Socket type
MC4
Plug type
MC4
Protection type (IP code)
IP65

Solar panel properties

Cell type
Monocrystalline
Solar panel design
Flexible
Nominal power
100 W
Voltage (MPP)
18 V
Rated current (MPP)
5.55 A
Short circuit current
5.82 A
Open circuit voltage (UMPP)
22.70 V
Efficiency
21.60%

Voluntary climate contribution

CO₂ emissions
76.26 kg
Climate contribution
CHF 1.82

Product dimensions

Length
120 cm
Width
54 cm
Weight
2.30 kg

Package dimensions

Length
122 cm
Width
55.70 cm
Height
3.50 cm
Weight
2.79 kg

30-day right of return
24 Months Warranty (Bring-in)
