Stürmer Unicraft - Gabelhochhubwagen GHHW 1025

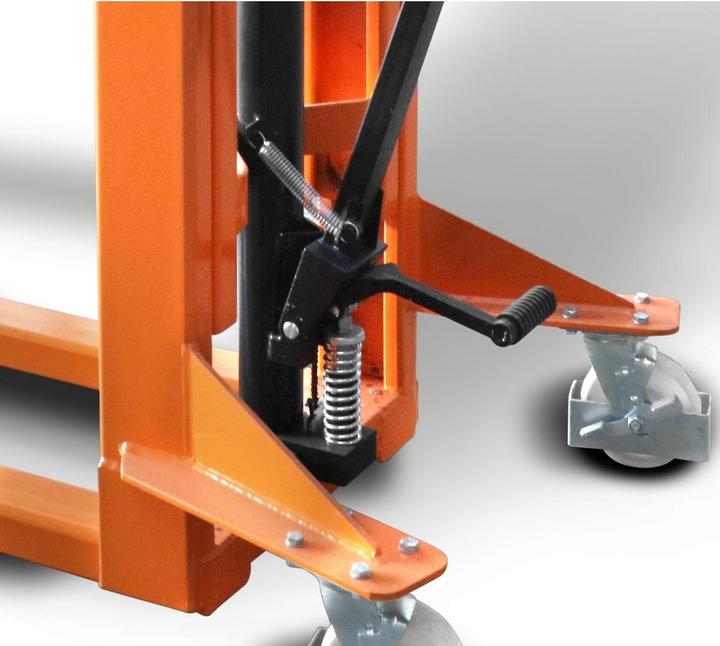

Facilitates handling and transport in warehouses and workshops. Usable for stacking and short transport. No sparks from static charge and no electromagnetic fields, making it suitable for flammable or explosive materials. Robust steel profile construction with high-quality welds. Fixed fork width for stable lifting of the load. Solidly built lifting device with a manually operated hydraulic pump. The lifting function is particularly easy and energy-saving to operate with foot and hand levers. Due to its compact design, it fits well through all door openings and fully stocked warehouses. Equipped with low-wear running wheels and swivel, ball-bearing nylon steering wheels for smooth maneuverability. Fitted with durable precision mechanics.

Technical Data:
General Information:

• Load capacity: 1 t
• Load width: 580 mm
• Fork width: 170 mm
• Fork length: 1150 mm
• Lifting range: 0 – 2500 mm
• Lift per pump stroke: 20 – 22 mm
• Lifting speed: 20 mm/s
• Lowering speed: 22 mm/s
• Steering angle: 360 °
• Turning radius: 1350 mm

Dimensions and Weights:

• Length (Product): approx. 1695 mm
• Width/Depth (Product): approx. 860 mm
• Height (Product): approx. 1838 mm
• Weight (Net): approx. 292 kg
• Max height (Product): approx. 2925 mm
• Steering wheel diameter: 80 mm
• Steering wheel width: 70 mm
• Fork wheel diameter: 147 mm
• Fork wheel width: 40 mm

Equipment:

• Steering wheel material: Nylon
• Fork wheel material: Nylon.
