Stürmer - Schraubenkompressor 485l/min, 10 bar, 400V, 4kW, m. Rippenbandriemenantrieb Bodeninstallat

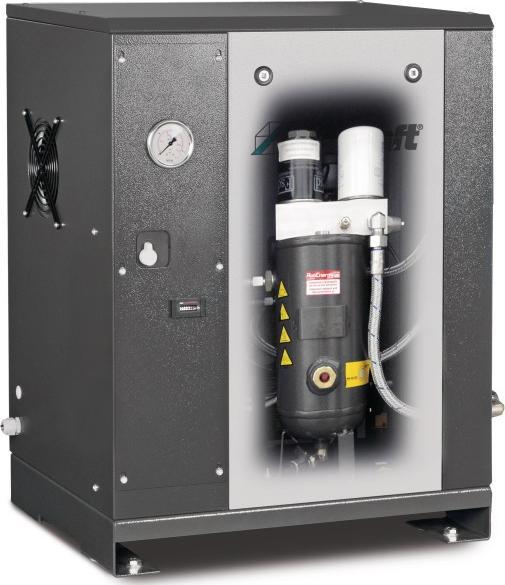

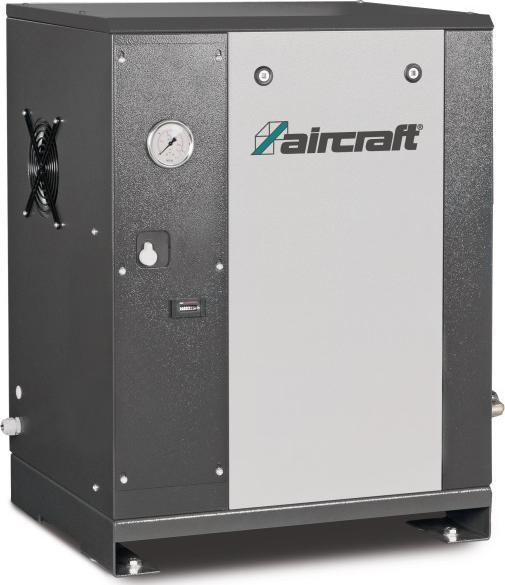

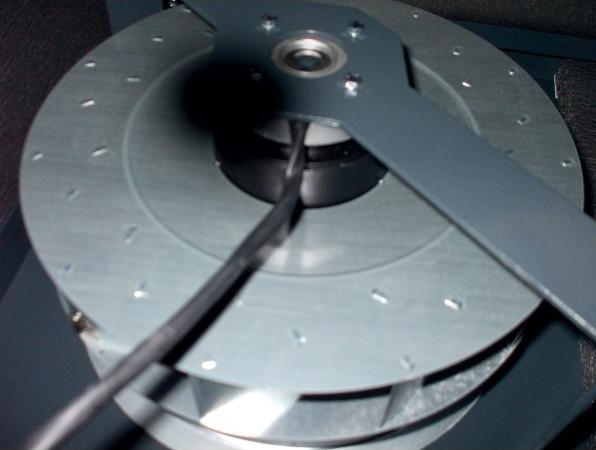

Space-saving single compressor with ribbed belt drive. Start-stop operation via pressure switch, resulting in energy savings compared to idle control. Particularly suitable for businesses with a continuous air demand, while requiring a compact unit with reduced noise levels and low operating costs. Standard super sound insulation allows installation in sensitive areas. Intensive cooling ensures operational reliability and good air quality. Equipped with star-delta starting from a motor power of 4 kW. Also ideal for supplementing existing systems, for example, to cover the base load of compressed air. Standard features include thermal motor protection, oil temperature monitoring (max. 110 °C), and an operating hour counter, ensuring high operational reliability. Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components. Fifteen-year warranty against rusting for internally and externally hot-dip galvanized compressed air tanks. When operating the screw compressor without a tank, the use of a bypass valve is recommended - available as an accessory.

Technical Data:
General Information:
Effective delivery volume approx. 485 l/min
Maximum pressure 10 bar
Air outlet ½ inch
Oil filling volume 2.2 l

Dimensions and Weights:
Length (product) approx. 580 mm
Width/Depth (product) approx. 480 mm
Height (product) approx. 760 mm
Weight (net) approx. 93 kg

Equipment:

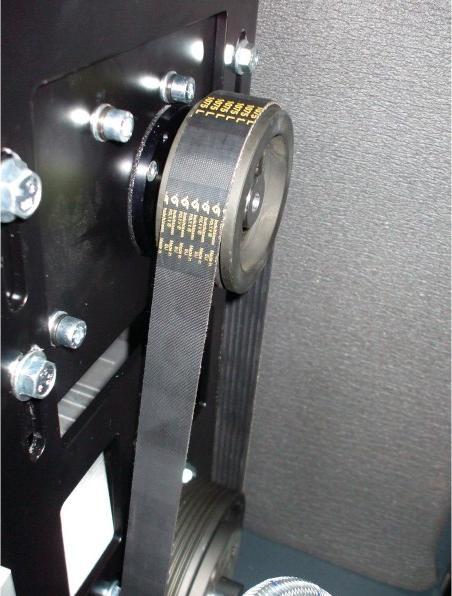

Drive transmission: Ribbed belt

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Power consumption electric motor 4 kW
Motor efficiency class IE3

Noise Emission:
Sound pressure level Lp 60 dB(A)
Explanation of sound pressure level: Sound pressure level at 1 m distance according to DIN 45635 T 13

Motor(s):
Motor type: Electric.
