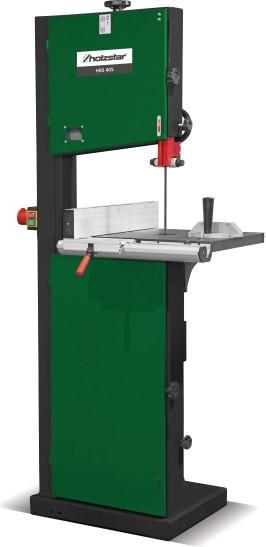

Stürmer Holzstar wood band saw HBS 405 400V rip fence angle fence 5902443

Description: Closed base with high stability. Safe and smooth saw cuts in wood. Heavy, tiltable cast iron work table with a ground surface. Powerful motor. Safety switch stops the machine when the door is opened, preventing unintended operation and startup. Cast iron flywheels ensure a smooth operation. Set cutting width can be easily read on a scale.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 760 mm
Width/Depth (Product) approx. 760 mm
Height (Product) approx. 1740 mm
Weight (Net) approx. 136 kg

Dust Extraction Connection:
Dust extraction port diameter 100 mm

Work Table(s):
Work table length 500 mm
Work table width 395 mm
Work table height 32 mm
Work table tilt 0 – 45 °

Sliding Table:
Sliding table length 200 mm
Sliding table width 100 mm

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Power consumption 1.5 kW
Output power 1.0 kW

Cutting Areas:
Max cutting height at 90° 200 mm
Max cutting width with stop 250 mm
Max cutting width without stop 375 mm

Saw Blade:
Saw blade speed(s) 600 m/min
Flywheel diameter 400 mm
Saw blade length 2950 mm
Saw blade width 16 mm
Max saw blade width 20 mm
Saw blade thickness 0.52 mm

Scope of Delivery:
Tool kit
Angle stop
Parallel stop.
