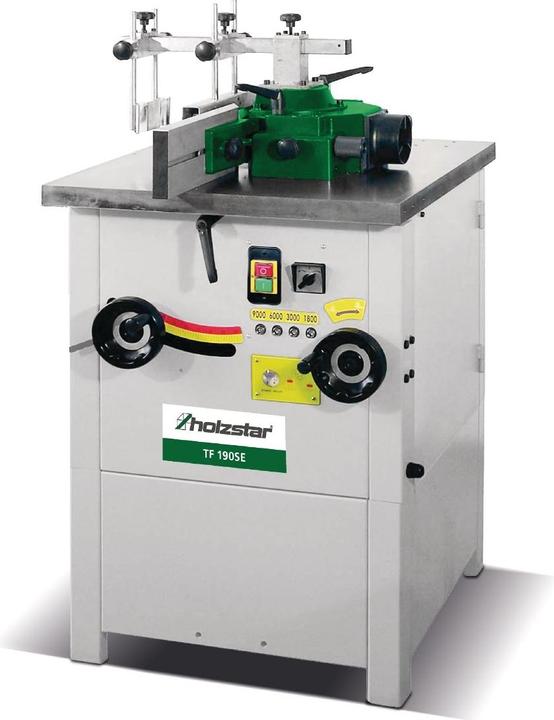

Stürmer - Holzstar Tischfräse TF 190 SE (400 V)

Milling stop with finely adjustable aluminum stops. Quick and easy speed changes using a poly-V belt. Display of the set speed via LED lights. Large working surface thanks to the solid and torsion-free cast iron table. Large milling unit made of cast iron, tiltable from +5 to -30°. Selector switch for clockwise/counterclockwise rotation of the milling spindle. Hold-down device for precise workpiece guidance. Sliding table and feed device available as accessories.

Technical Data:

Dimensions and Weights:

• Length (product) approx. 750 mm
• Width/Depth (product) approx. 660 mm
• Height (product) approx. 1200 mm
• Weight (net) approx. 174 kg

Dust Extraction Connection:

• Dust extraction port diameter 100 mm

Work Table:

• Work table length 710 mm
• Work table width 640 mm
• Table height 900 mm

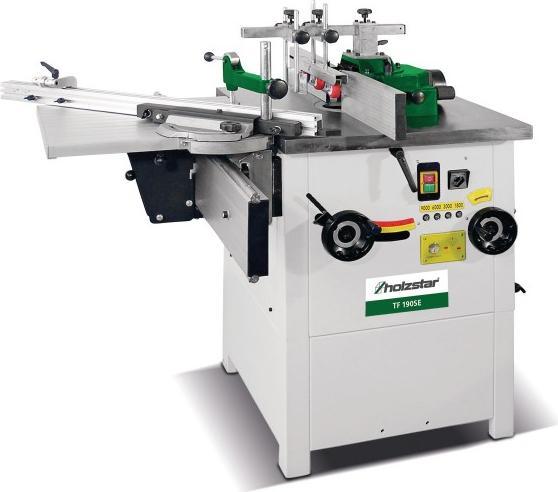

• Sliding carriage length 1200 mm
• Sliding carriage width 700 mm
• Sliding carriage height 500 mm

Equipment:

• Manual spindle height adjustment
• Manual spindle tilt adjustment

Electrical Data:

• Connection voltage 400 V
• Network frequency 50 Hz
• Drive motor power 2.2 kW
• Power consumption 2.8 kW
• Protection class of drive motor IP54
• Rated operating mode of drive motor S1

Milling Spindle:

• Spindle tilt -5 to +30°
• Usable spindle length 100 mm
• Milling spindle stroke 100 mm
• Maximum spindle overhang above table 100 mm
• Spindle speed(s) 1800/3000/6000/9000 min⁻¹
• Speed control Belt
• Milling spindle speed display LED on the machine front
• Spindle shaft diameter 30 mm
• Maximum lowering diameter of milling tool 200 mm.
