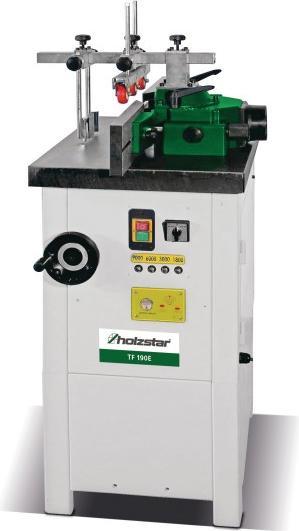

Stürmer - Holzstar Tischfräse TF 190 E (400 V)

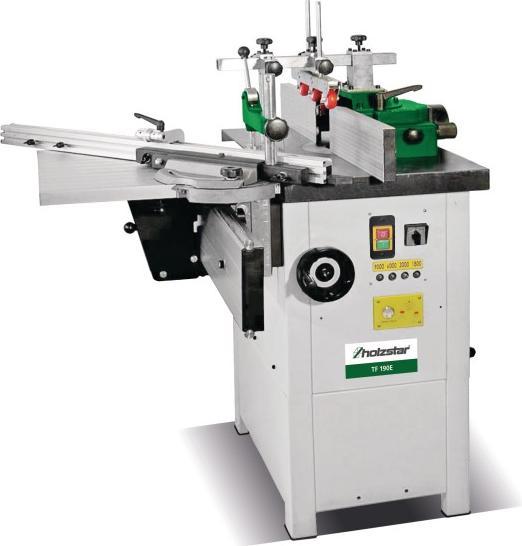

Milling stop with finely adjustable aluminum stops. Quick and easy speed changes using a multi-V belt. Display of the set speed via LED lights. Large working area with a torsion-free cast iron table. Selector switch for clockwise/counterclockwise rotation of the milling spindle. Milling unit made of cast iron. Lowering device for precise workpiece guidance. Sliding table and feed device available as accessories.

Technical Data:

Dimensions and Weights:

• Length (Product) approx. 730 mm
• Width/Depth (Product) approx. 500 mm
• Height (Product) approx. 1200 mm
• Weight (Net) approx. 140 kg

Connection for Dust Extraction:

• Dust extraction port diameter 100 mm

Work Table:

• Work table length 690 mm
• Work table width 480 mm
• Table height 900 mm

Equipment:

• Manual spindle height adjustment

Electrical Data:

• Connection voltage 400 V
• Network frequency 50 Hz
• Drive motor power 2.2 kW
• Power consumption 2.8 kW
• Protection class of drive motor IP54
• Rated operating mode of drive motor S1

Milling Spindle:

• Usable spindle length 100 mm
• Milling spindle stroke 100 mm
• Maximum spindle overhang above table 100 mm
• Spindle speeds 1800/3000/6000/9000 min⁻¹
• Speed control Belt
• Spindle speed display LED on the front of the machine
• Spindle shaft diameter 30 mm
• Maximum lowering diameter of milling tool 200 mm.
