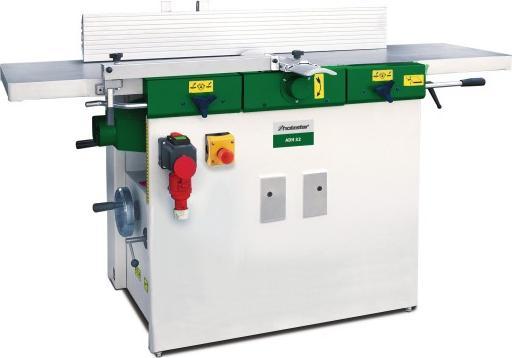

Stürmer - Holzstar Abricht-Dickenhobel ADH 32

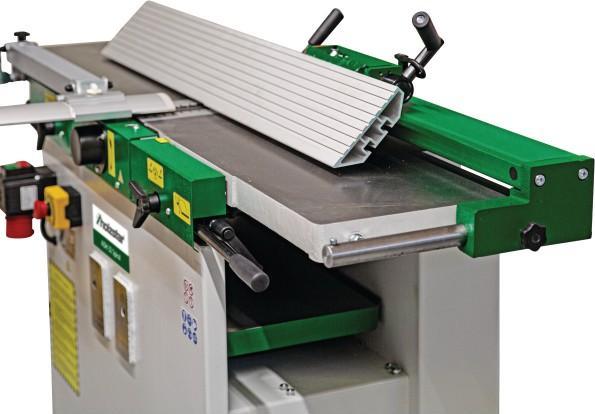

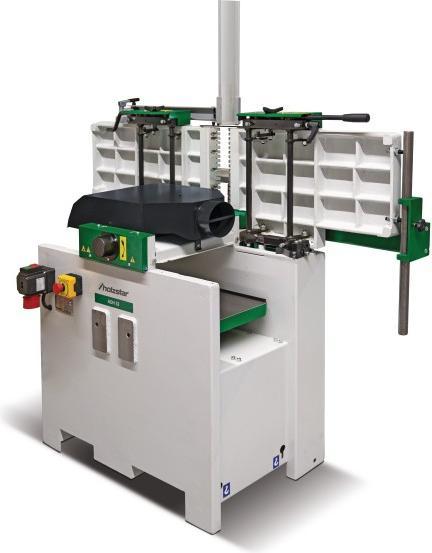

Thickness planer for precise, angled planing of smooth surfaces. Thickness table with central column guide, additional guide, and mechanical counter (accuracy 0.1 mm). Large-sized planing tables made of cast iron with a ground surface. The planing tables can be flipped up with spring support for quick and convenient conversion to thickness planing in seconds. Sturdy professional planing stop, adjustable from 90 to +45°. Space-saving side guide for the planing stop. High-quality workmanship and ergonomic design. Long hole drilling device available as an accessory.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1500 mm
Width/Depth (Product) approx. 650 mm
Height (Product) approx. 1000 mm
Weight (Net) approx. 360 kg

Planer:
Planing table length 1500 mm
Planing table width 320 mm
Working height 850 mm
Max. chip removal planing 5 mm
Swing range planing stop 90 – 45 °

Dust Extraction Connection:
Dust extraction port diameter thickness 120 mm

Thickness:
Thickness table length 700 mm
Thickness table width 316 mm
Min. working height thickness 4 mm
Max. working height thickness 225 mm
Min. working length thickness 300 mm
Max. chip removal thickness 5 mm

Electrical Data:
Power consumption 4.0 kW
Connection voltage 400 V
Mains frequency 50 Hz

Planing Knife Shaft:
Planing knife shaft type strip planing knife shaft
Planing knife shaft diameter 100 mm
Number of planing knives 3 pcs
Planing knife shaft speed 4600 min⁻¹
Max. planing width 320 mm

Feed:
Feed speed 8 m/min

Scope of Delivery:
Reversible planing knives mounted
Professional side planing stop.
