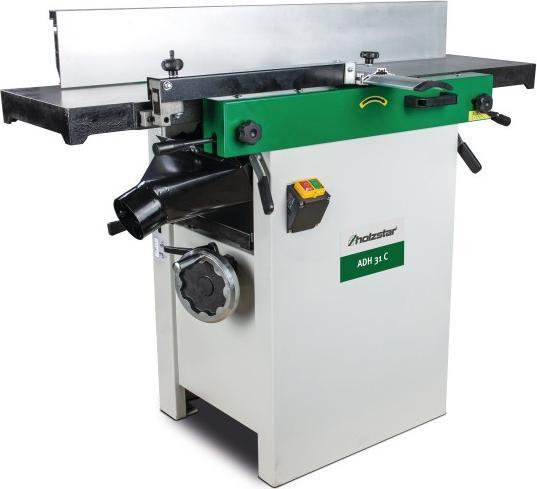

Stürmer - Holzstar Abricht-Dickenhobel ADH 31C (230 V)

Description

For precise edge jointing (90°) and flat planing of solid wood boards, beams, and strips. Simple and precise adjustment of chip removal during accurate thickness planing. Automatic workpiece feed. Easily adjustable aluminum planing stop, tiltable from 90° to +45°. Large-sized planing table made of ribbed aluminum die-cast. Large thickness table made of cast iron with a ground surface. Integrated, foldable chip extraction hood.

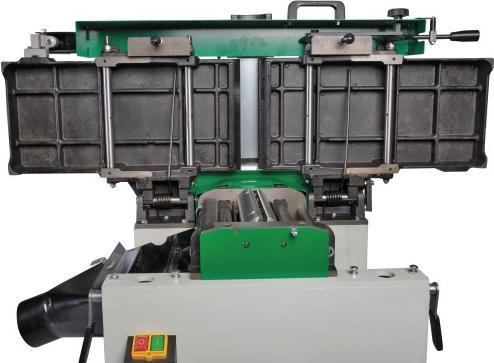

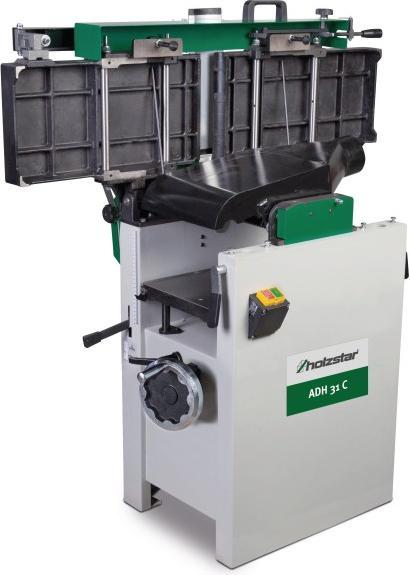

Equipment details: Simultaneous opening of the planing tables. Simultaneous lifting of the planing tables with spring support for quick and convenient conversion to thickness planing in seconds. Fixed-mounted extraction hood. Thanks to the fixed-mounted extraction hood, no re-plugging of the extraction hose is necessary during conversion. Time-saving. The table height adjustment is simple and convenient via a handwheel.

Technical Data

Dimensions and weights:

• Length (product) approx. 1300 mm
• Width/Depth (product) approx. 720 mm
• Height (product) approx. 1010 mm
• Weight (net) approx. 210 kg

Planer:

• Planing table length 1295 mm
• Planing table width 325 mm
• Working height 850 mm
• Maximum chip removal planing 3 mm
• Swivel range planing stop 90 – 45 °

Extraction connection:

• Extraction socket diameter thickness 100 mm
• Extraction socket diameter planing 100 mm

Thickness:

• Thickness table length 545 mm
• Thickness table width 308 mm
• Minimum working height thickness 5 mm
• Maximum working height thickness 225 mm
• Maximum chip removal thickness 3 mm

Electrical data:

• Power drive motor 2.2 kW
• Power consumption 2.84 kW
• Connection voltage 230 V
• Network frequency 50 Hz

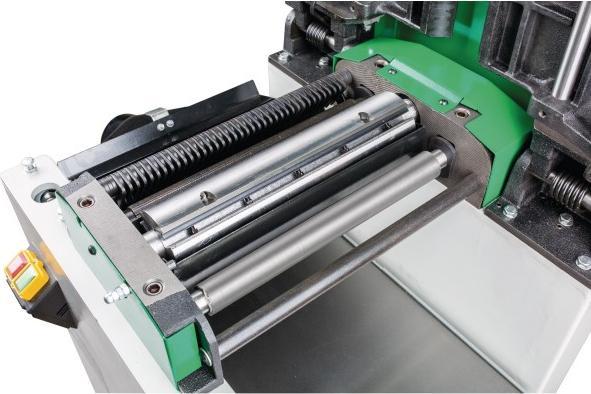

Planing knife shaft:

• Planing shaft type strip planing knife shaft
• Planing shaft diameter 70 mm
• Number of planing knives 3 pcs
• Planing shaft speed 5200 min¯¹
• Maximum planing width 308 mm

Feed:

• Feed speed 7 m/min.
