Stürmer Holzstar - Abricht-Dickenhobel ADH 26C (400 V)

Description

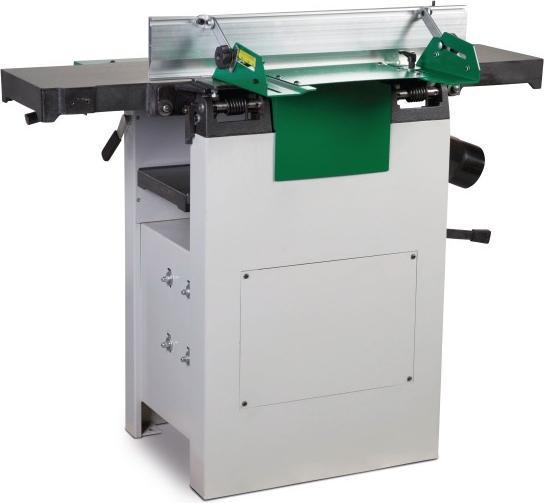

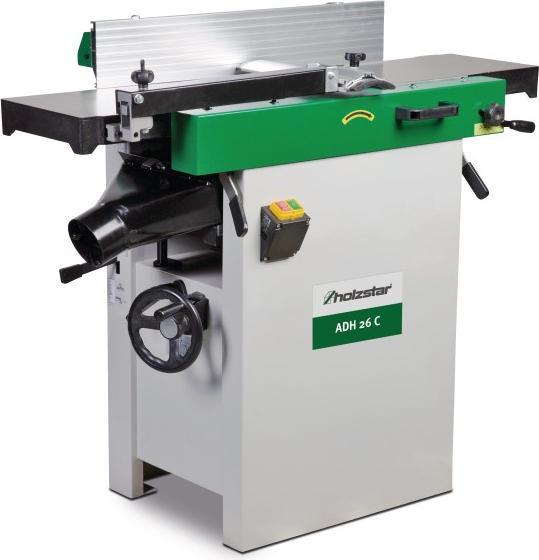

For angular jointing (90°) and precise planing of solid wood boards, beams, and strips. Simple and precise adjustment of chip removal during accurate thickness planing. Automatic workpiece feed. Easily adjustable aluminum jointing stop, tiltable from 90° to +45°. Large jointing table made of ribbed aluminum die-cast. Large thickness table made of gray cast iron with a ground surface. Integrated, foldable chip extraction hood.

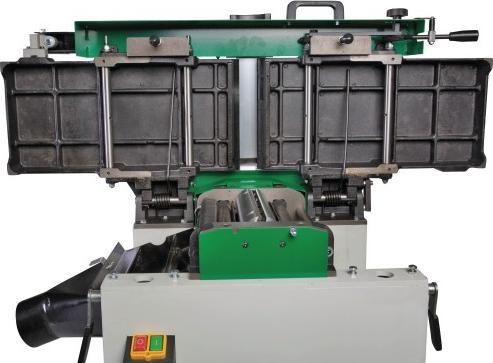

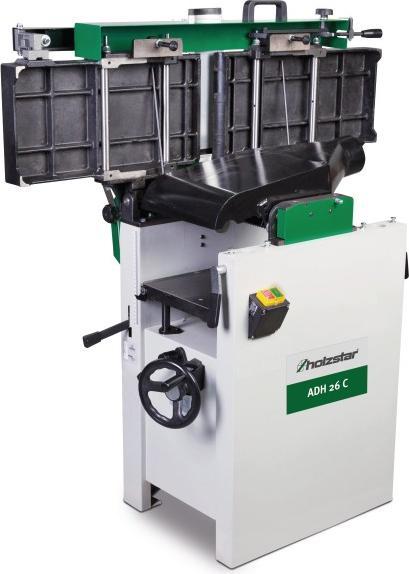

Equipment details: Simultaneous opening of the jointing tables. Simultaneous lifting of the jointing tables with spring support for quick and convenient conversion to thickness planing in seconds. Fixed chip extraction hood. Thanks to the fixed chip extraction hood, no re-plugging of the extraction hose is necessary during conversion. Time-saving. The table height adjustment is simple and convenient via a handwheel.

Technical specifications

Dimensions and weights:

• Length (product) approx. 1120 mm
• Width/Depth (product) approx. 630 mm
• Height (product) approx. 960 mm
• Weight (net) approx. 170 kg

Jointing:

• Jointing table length 1120 mm
• Jointing table width 275 mm
• Working height 830 mm
• Maximum chip removal jointing 3 mm
• Swivel range jointing stop 90 – 45 °

Connection for extraction:

• Extraction port diameter thickness 100 mm
• Extraction port diameter jointing 100 mm

Thickness:

• Thickness table length 545 mm
• Thickness table width 258 mm
• Minimum working height thickness 5 mm
• Maximum working height thickness 225 mm
• Maximum chip removal thickness 3 mm

Electrical data:

• Drive motor power 1.7 kW
• Power consumption 2.2 kW
• Connection voltage 400 V
• Mains frequency 50 Hz

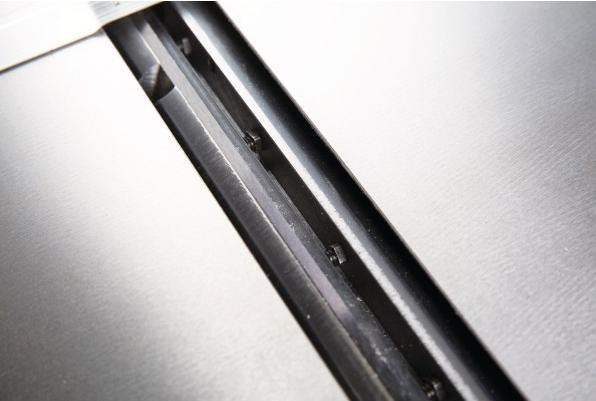

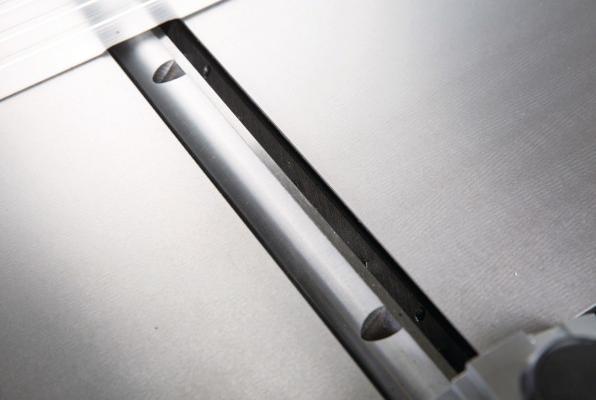

Planing knife shaft:

• Planing shaft type strip planing knife shaft
• Planing shaft diameter 70 mm
• Number of planing knives 3
• Planing shaft speed 5200 min⁻¹
• Maximum planing width 258 mm

Feed:

• Feed speed 5.5 m/min.
