Stürmer - Holzstar Abricht-Dickenhobel ADH 260

Description

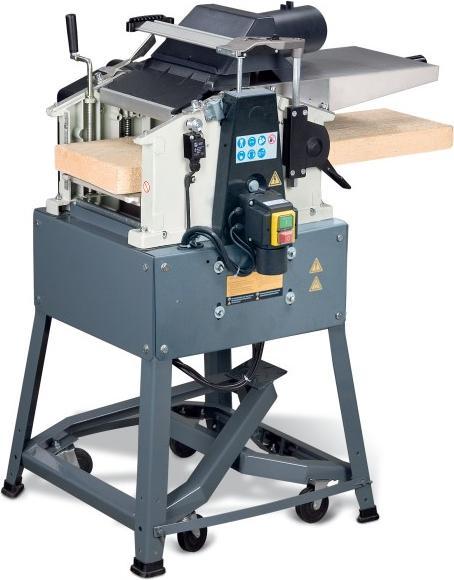

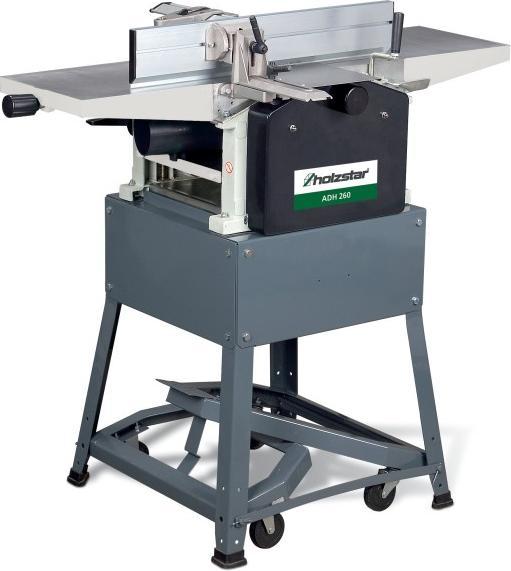

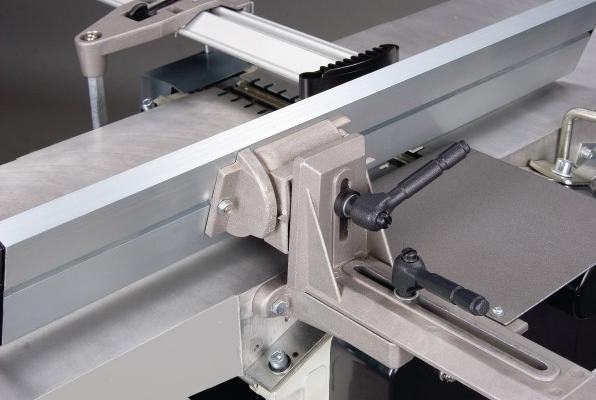

For precise 90° jointing and planing of solid wood boards and strips. Simple and precise adjustment of the chip removal of up to 3 mm during accurate thickness planing. Easy and convenient table height adjustment via a hand crank. Automatic workpiece feed (5 m/min). A rubberized outfeed roller protects the surface during thickness planing. Easily adjustable aluminum jointing stop, tiltable from 90° to +45°. Large jointing table made of ribbed aluminum die-cast. Cutter shaft with 2 HSS planing knives. Large thickness table made of cast iron with a ground surface, 4-fold supported. Integrated, detachable chip extraction hood. The extraction hood is used for both jointing and thickness planing.

Technical Data

Dimensions and Weights
Length (Product) approx. 1130 mm
Width/Depth (Product) approx. 595 mm
Height (Product) approx. 940 mm
Weight (Net) approx. 66 kg

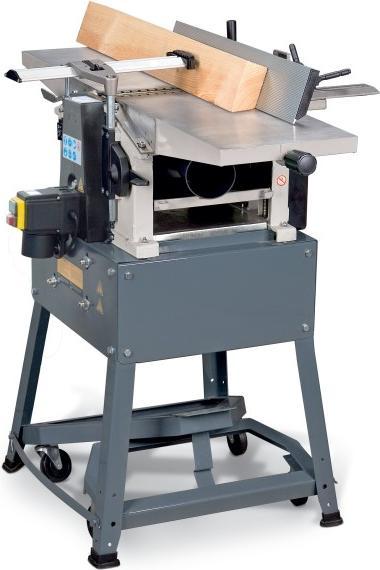

Jointing
Jointing table length 1030 mm
Jointing table width 280 mm
Max. chip removal jointing 3 mm
Swivel range jointing stop 90 – 45 °

Extraction Connection
Extraction port diameter thickness 120 mm

Thickness Table
Length 260 mm
Width 400 mm
Working height thickness min. 4 mm
Working height thickness max. 160 mm

Electrical Data
Rated operating mode drive motor S1
Power drive motor 1.5 kW
Input power 2.0 kW
Connection voltage 230 V
Mains frequency 50 Hz

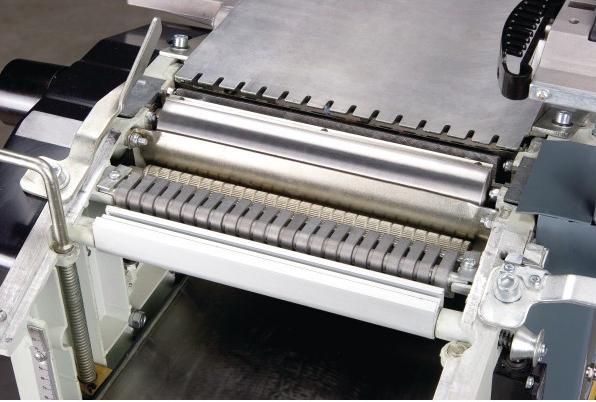

Planing Knife Shaft
Planing knife shaft type strip planing knife shaft
Planing shaft diameter 63 mm
Number of planing knives 2 pcs
Planing shaft speed 6500 min¯¹
Max. planing width 260 mm

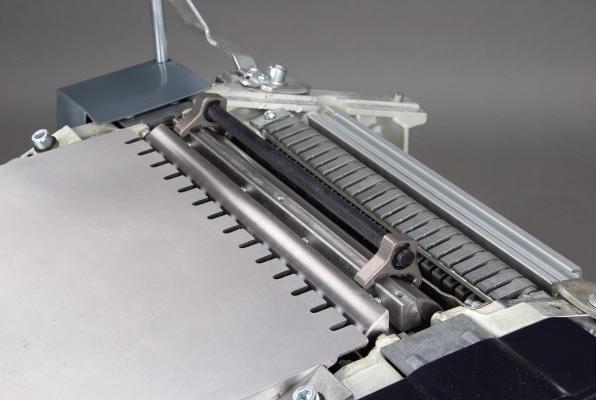

Feed
Feed speed 5 m/min

Scope of Delivery
Cutter shaft with 2 HSS planing knives
Planing knife adjustment gauge
Machine base with wheels.
