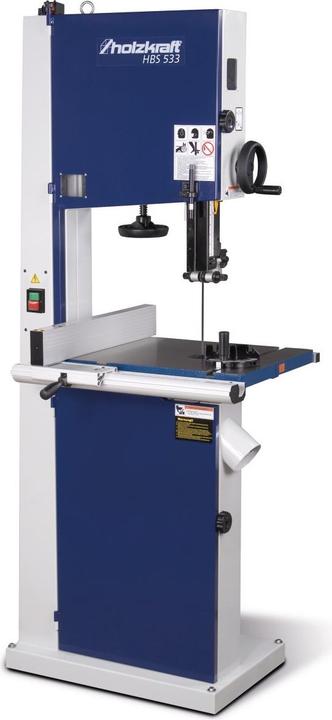

Stürmer - Holzkraft Holzbandsäge HBS 533 (IE3) Aktionsset

Particularly quiet and precise operation thanks to a torsion-free machine housing and a solid base made of sheet steel. Cast iron saw table with a precisely ground and polished surface. Comfortable laser device for marking the cutting line. Quick tensioning of the saw blade via an eccentric lever at the back of the machine. Standard with two speeds. Precise 3-roller saw blade guides, standard both above and below. Quick adjustment of cutting height via a rotary knob and rack with millimeter scale. Smooth-running aluminum parallel stop with eccentric quick clamping and magnifying glass. Standard angle stop, adjustable on both sides up to 60°. Safety switch for automatic shutdown when the door is opened.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1020 mm
Width/Depth (Product) approx. 880 mm
Height (Product) approx. 1982 mm
Weight (Net) approx. 187 kg

Connection for Dust Extraction:
Dust extraction port diameter 2 x 120 mm

Work Table(s):
Work table length 535 mm
Work table width 535 mm
Work table height 945 mm
Maximum work table length 685 mm
Work table extension length 535 mm
Work table extension width 150 mm
Work table tilt -10 – 45 °

Explanation of Work Table Tilt:
For safety reasons, a holding device or stop must be attached from 20° to prevent the wood from slipping!

Electrical Data:
Connection voltage 400 V
Mains frequency 50 Hz
Output power 2.25 kW

Cutting Areas:
Maximum cutting height at 90° 270 mm
Maximum cutting width with stop 474 mm
Maximum cutting width without stop 514 mm

Saw Blade:
Saw blade speed(s) 850 / 430 m/min
Flywheel diameter 530 mm
Saw blade length 3865 mm
Saw blade guide: Precision guide above and below

Scope of Delivery:
Angle stop ±60°
Laser device for marking the cutting line
1 x saw blade 3865 x 10 x 0.5 mm, 4 teeth
1 x saw blade 3865 x 20 x 0.5 mm, 4 teeth
1 x saw blade 3865 x 25 x 0.5 mm, 4 teeth.
