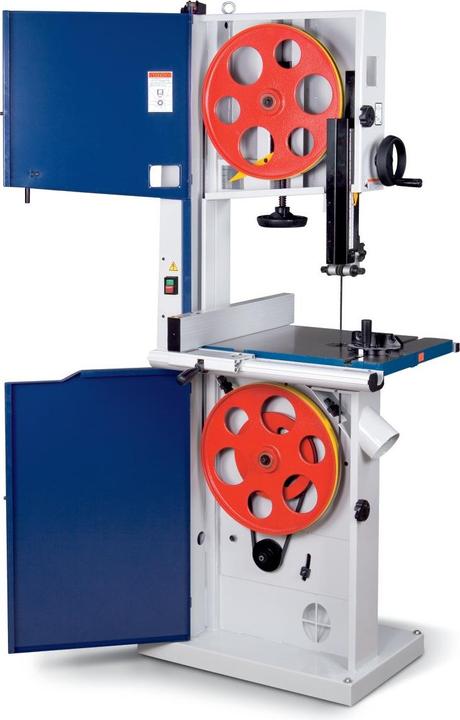

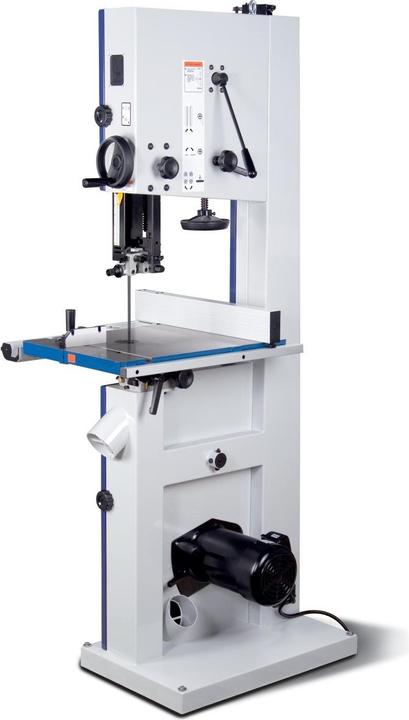

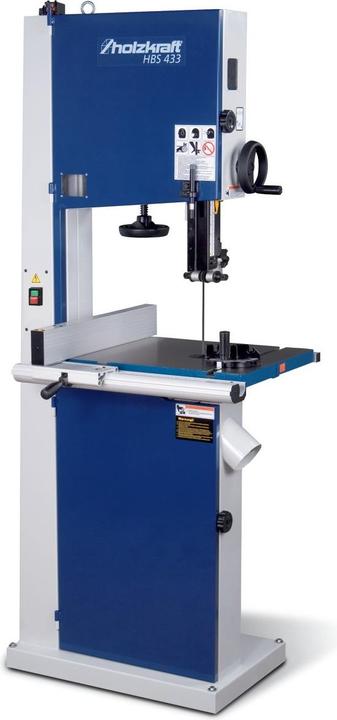

Stürmer - Holzkraft Holzbandsäge HBS 433 (IE3) Aktionsset

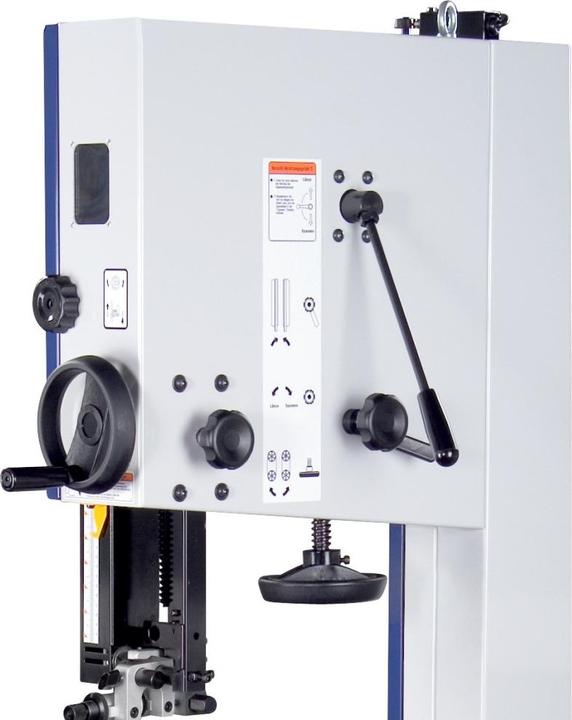

Especially quiet and precise operation thanks to a torsion-free machine housing and a solid steel sheet base. Cast iron saw table with a precisely ground and polished surface. Comfortable laser device for marking cutting lines. Quick tensioning of the saw blade via an eccentric lever on the back of the machine. Standardly equipped with two speeds. Precise 3-roller saw blade guides, standard both above and below. Quick adjustment of cutting height via a rotary knob and rack with millimeter scale. Smooth-running aluminum parallel stop with eccentric quick clamping and magnifying glass. Standard angle stop, adjustable on both sides up to 60°. Safety switch for automatic shutdown when the door is opened.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 820 mm
Width/Depth (Product) approx. 800 mm
Height (Product) approx. 1852 mm
Weight (Net) approx. 158.5 kg

Connection for Dust Extraction:
Dust extraction port diameter 2 x 120 mm

Work Table(s):
Work table length 610 mm
Work table width 431 mm
Work table height 950 mm
Work table tilt -10 – 45 °
Explanation of work table tilt: For safety reasons, a holding device / stop must be installed from 20° to prevent the wood from slipping!

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Output power 1.5 kW

Cutting Areas:
Max. cutting height at 90° 270 mm
Max. cutting width with stop 370 mm
Max. cutting width without stop 410 mm

Saw Blade:
Saw blade speeds 900 / 450 m/min
Flywheel diameter 430 mm
Saw blade length 3345 mm

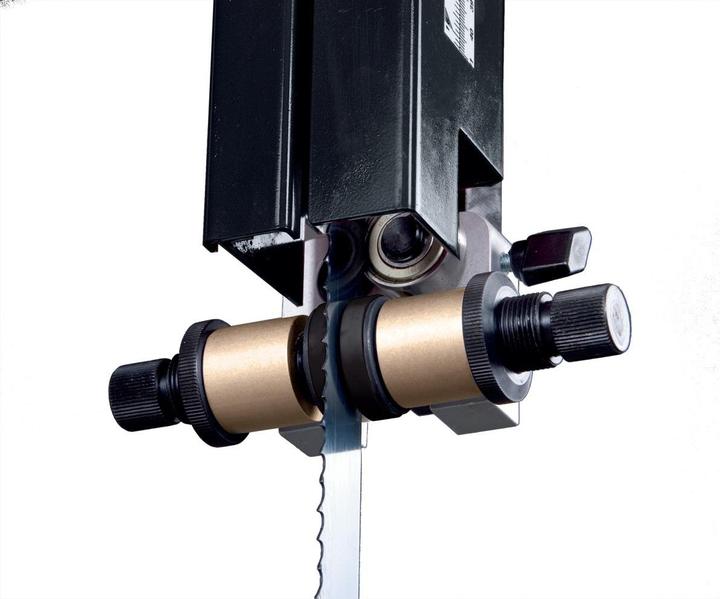

Saw blade guide 3-roller precision guide above and below

Scope of Delivery:
Angle stop ±60°
Laser device for marking cutting lines
1 x saw blade wood 3345 x 6 x 0.65 mm; 6 tooth
1 x saw blade wood 3345 x 16 x 0.5 mm; 4 tooth
1 x saw blade wood 3345 x 25 x 0.5 mm; 4 tooth.
