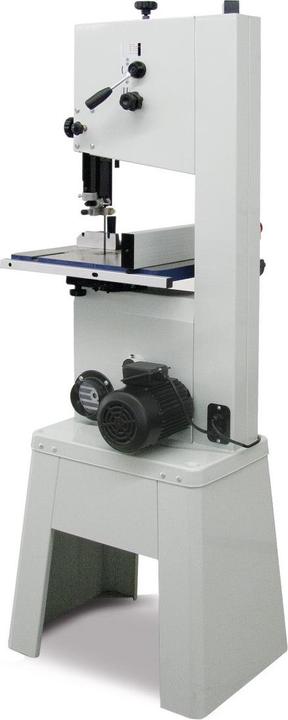

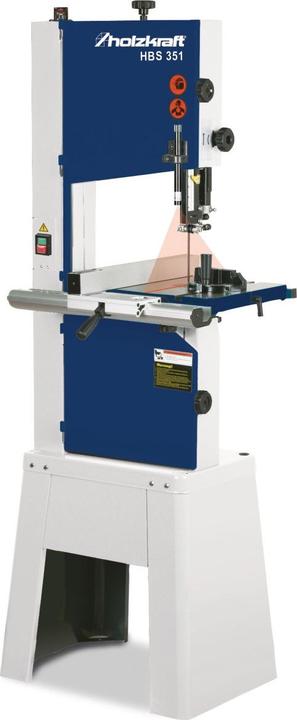

Stürmer - Holzkraft Holzbandsäge HBS 351 (IE2) Aktionsset

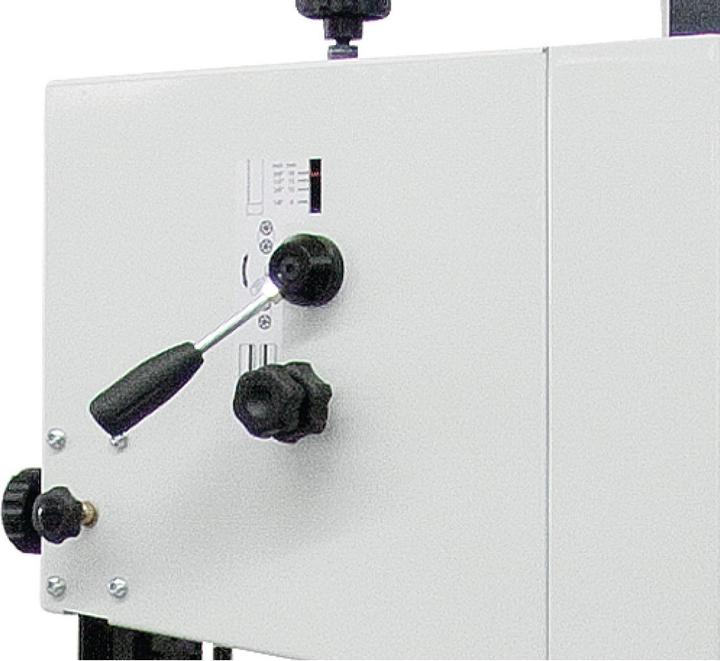

Especially quiet and precise operation thanks to a torsion-free machine housing and a solid steel sheet base. Gray cast iron saw table with precisely ground and polished surface. Comfortable laser device for marking the cutting line. Quick tensioning of the saw blade via an eccentric lever at the back of the machine. Standard with two speeds. Precise 3-roller saw blade guides, standard both above and below starting from HBS 351. Quick adjustment of cutting height via a rotary knob and rack with millimeter scale. Smooth-running aluminum parallel stop with eccentric quick clamping and magnifying glass. Standard angle stop, adjustable on both sides up to 60°. Safety switch for automatic shutdown when the door is opened.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 770 mm
Width/Depth (Product) approx. 755 mm
Height (Product) approx. 1750 mm
Weight (Net) approx. 88.5 kg

Connection for Dust Extraction:
Dust extraction port diameter 120 mm

Work Table(s):
Work table length 495 mm
Work table width 356 mm
Work table height 1065 mm

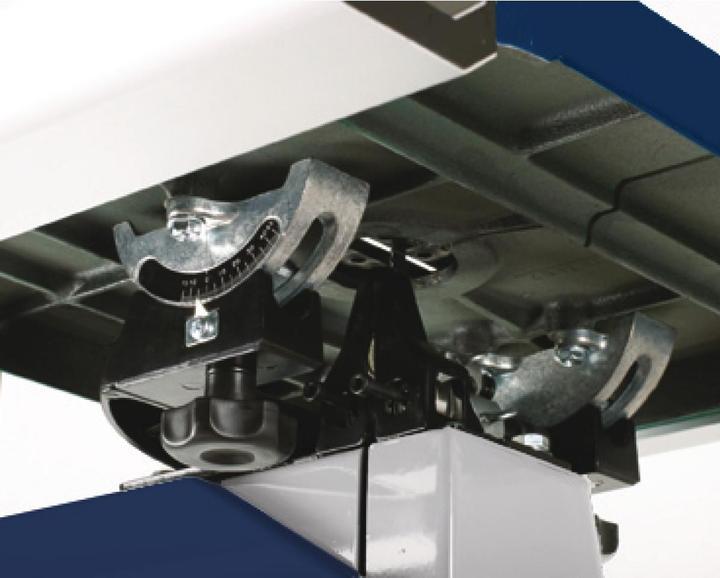

Work table tilt -10 – 45 °

Explanation of Work Table Tilt:
For safety reasons, a holding device/stop must be installed from 20° to prevent the wood from slipping!

Electrical Data:
Connection voltage 230 V
Mains frequency 50 Hz
Output power 0.55 kW

Cutting Areas:
Max. cutting height at 90° 200 mm
Max. cutting width with stop 321 mm
Max. cutting width without stop 346 mm

Saw Blade:
Saw blade speed(s) 650 / 400 m/min

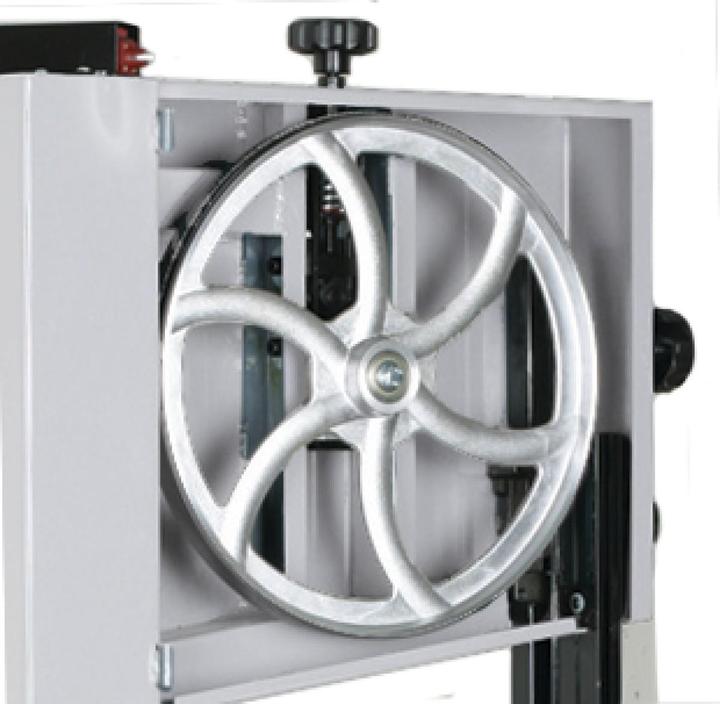

Flywheel diameter 356 mm
Saw blade length 2562 mm

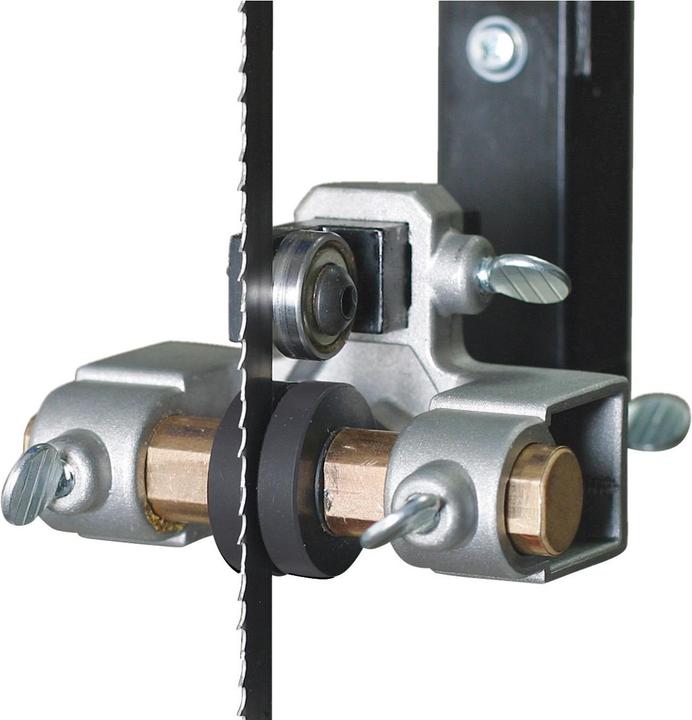

Saw blade guide 3-roller precision guide above and below

Scope of Delivery:
Angle stop ±60°
Laser device for marking the cutting line
1 x Universal saw blade 2562 x 6 x 0.65 mm; 6 TPI
1 x Universal saw blade 2562 x 10 x 0.5 mm; 4 TPI
1 x Universal saw blade 2562 x 16 x 0.5 mm; 4 TPI.
