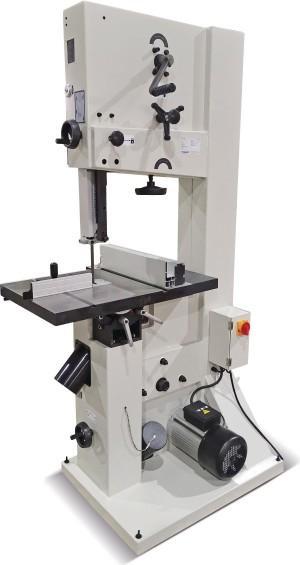

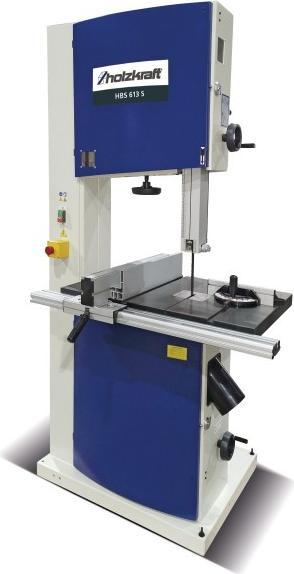

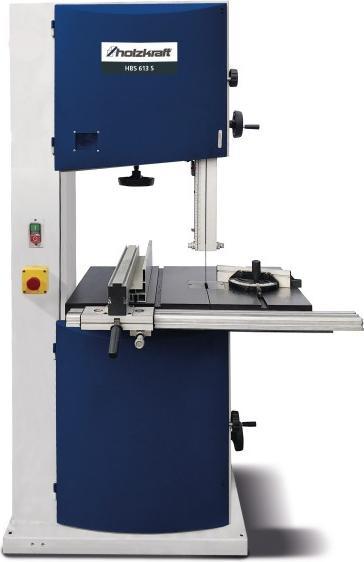

Stürmer Holzkraft - HBS 613 S wood band saw

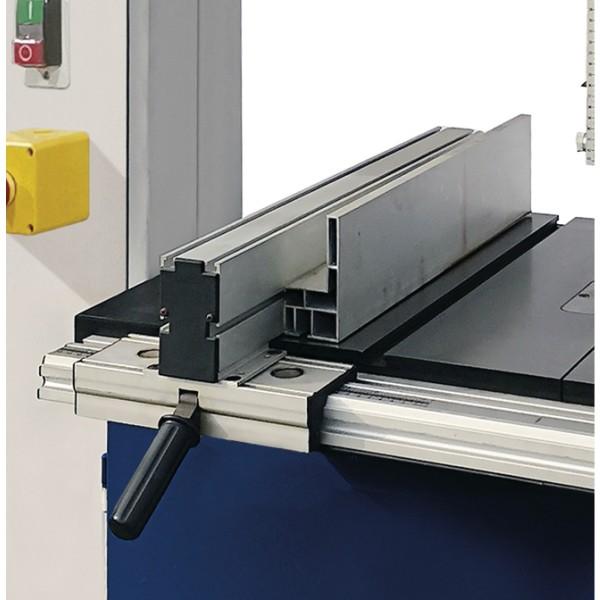

Heavy-duty design with high self-weight for maximum running smoothness. Particularly quiet and precise operation thanks to the torsion-resistant machine housing. Precisely adjustable aluminum parallel stop. Cast flywheels with rubber coating and chip removal brush. Large cast iron saw table, tiltable from 0° to +45° with a ground and polished surface. Precise cutting height adjustment via rack and pinion with millimeter scale. Two dust extraction ports. Automatic release of the saw blade brake for adjusting the saw blade.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1250 mm
Width/Depth (Product) approx. 1015 mm
Height (Product) approx. 2150 mm
Weight (Net) approx. 337 kg

Dust Extraction Connection:
Dust extraction port diameter 2 x 120 mm

Work Table(s):
Work table length 700 mm
Work table width 610 mm
Work table height 920 mm
Work table extension length 200 mm
Work table extension width 610 mm
Work table tilt 0 – 45 °

Explanation of Work Table Tilt:
For safety reasons, a holding device / stop must be attached from 20° onwards to prevent the wood from slipping!

Electrical Data:
Connection voltage 400 V
Mains frequency 50 Hz
Output power 4.0 kW

Cutting Areas:
Max. cutting height at 90° 430 mm
Max. cutting height at 45° 258 mm
Max. cutting width with stop 495 mm
Max. cutting width without stop 600 mm

Saw Blade:
Saw blade speed(s) 1560 m/min
Flywheel diameter 610 mm
Saw blade length 4590 mm
Minimum saw blade length 4580 mm
Maximum saw blade length 4600 mm
Saw blade width 25 mm
Maximum saw blade width 38 mm
Saw blade thickness 0.6 mm
Saw blade guide: High-quality, fixed saw blade guide

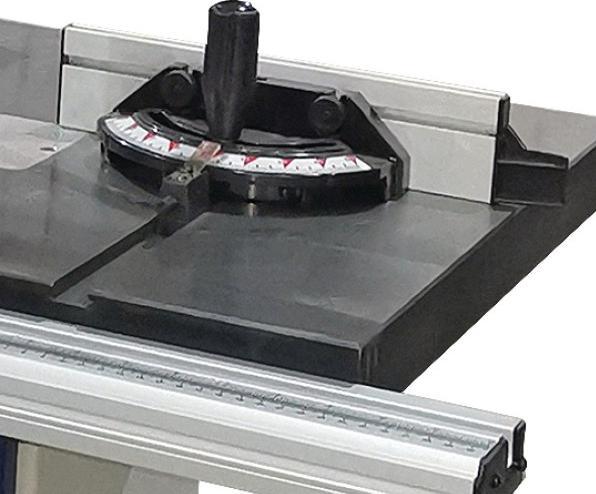

Scope of Delivery:
Angle stop, saw blade, push stick.
