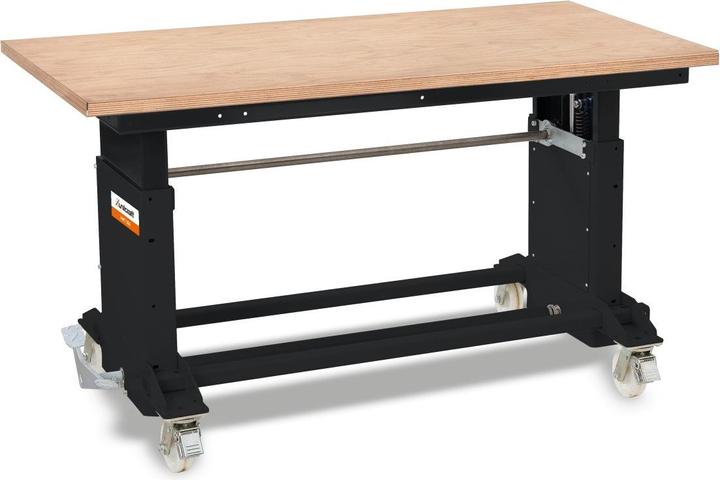

Stürmer Holzkraft - Arbeits- und Montagetisch AMT 500 B

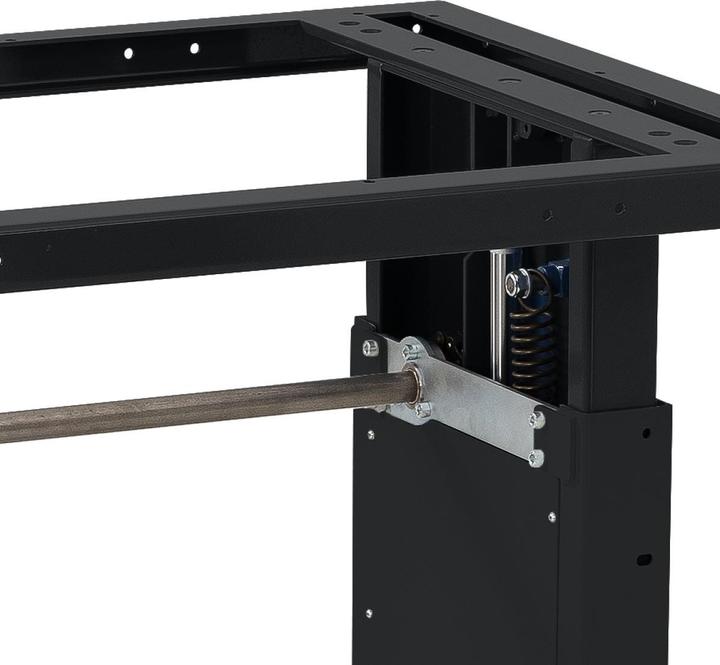

Height adjustment using foot hydraulics. A robust helper in any workshop and work environment. The patented height adjustment system ensures a smooth and stepless height adjustment, even with uneven load distribution or eccentric loading. No jamming, no jerking. Responds quickly and at a well-controlled speed. Clear width of 1105 mm between the lifting columns. Four swivel castors, two of which have brakes.

Technical Data:

General Information:

• Load capacity: 500 kg
• Minimum table height: 700 mm
• Maximum table height: 1000 mm

Dimensions and Weights:

• Length (product): approx. 1460 mm
• Width/Depth (product): approx. 740 mm
• Height (product): approx. 700 mm
• Weight (net): approx. 140 kg
• Platform outer length: 1460 mm
• Platform outer width: 740 mm

Equipment:

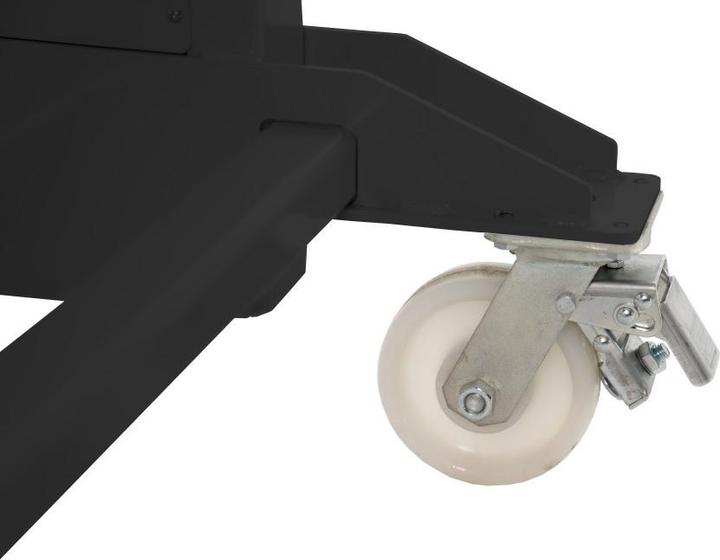

• Castors: 4 swivel castors Ø 125 mm, 2 with locking brakes
• Worktop: Beech multiplex work surface
• Worktop length: 1600 mm
• Worktop width: 790 mm
• Side panel height: 30 mm.
