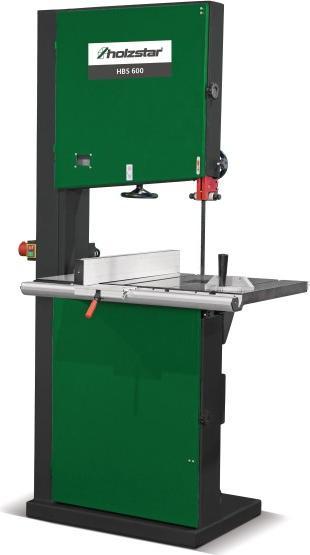

Stürmer - Holzbandsäge HBS 600 (400 V) Holzstar

Description: Closed base with high stability. Safe and straight cuts in wood. Heavy, tiltable cast iron work table with a ground surface. Powerful motor. Safety switch stops the machine when the door is opened, preventing unintended operation and starting. Cast iron flywheels ensure smooth operation. Set cutting width can be easily read on a scale.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1150 mm,
Width/Depth (Product) approx. 930 mm,
Height (Product) approx. 2000 mm,
Weight (Net) approx. 280 kg.

Connection for Dust Extraction:
Dust extraction nozzle diameter 100 mm.

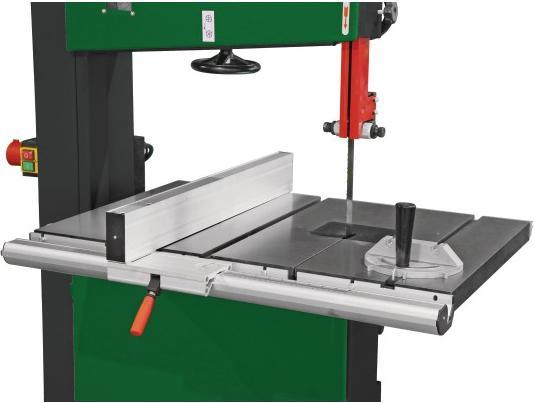

Work Table(s):
Work table length 860 mm,
Work table width 550 mm,
Work table height 35 mm,
Work table tilt 0 – 20 °,
Sliding carriage length 200 mm,
Sliding carriage width 100 mm.

Electrical Data:
Connection voltage 400 V,
Mains frequency 50 Hz,
Power consumption 3.6 kW,
Output power 3.0 kW.

Cutting Areas:
Max cutting height at 90° 310 mm,
Max cutting width with stop 540 mm,
Max cutting width without stop 580 mm.

Saw Blade:
Saw blade speed(s) 600 m/min,
Flywheel diameter 600 mm,
Saw blade length 4080 mm,
Saw blade width 32 mm,
Max saw blade width 40 mm,
Saw blade thickness 0.65 mm.

Scope of Delivery: Tool kit, angle stop, parallel stop.
