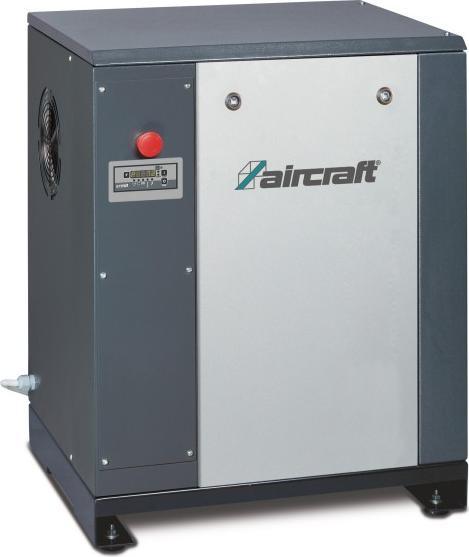

Stürmer Aircraft - Schraubenkompressor 485l/min, 10 bar, 400V, 4kW, m. Rippenbandriemenantrieb Bodeninstalla

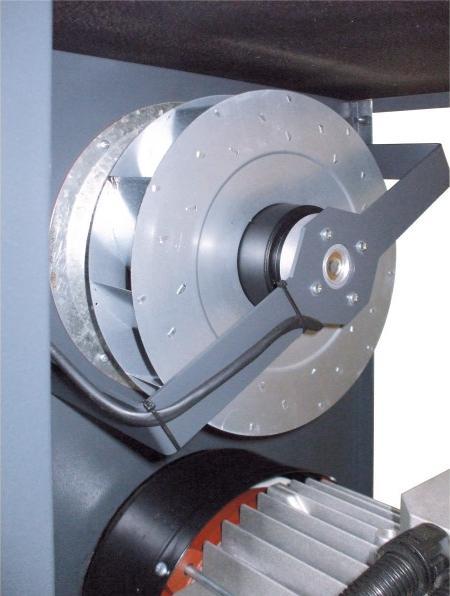

Space-saving single compressor with ribbed belt drive. Equipped with ETM II control including rotation direction monitoring. Particularly suitable for businesses with a continuous air demand, while requiring a compact unit with a reduced noise level and low operating costs. Standard super sound insulation allows for installation in sensitive areas. Intensive cooling ensures operational reliability and good air quality. Comes standard with star-delta switching. Ideal for supplementing existing systems, e.g., to cover the base load of compressed air. Standard features include thermal motor protection, oil temperature monitoring (max. 110 °C), and an operating hour counter, ensuring high operational reliability. Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components. Fifteen-year warranty against rusting on internally and externally hot-dip galvanized compressed air tanks.

Technical Data:
General Information:
Effective delivery rate approx. 485 l/min
Maximum pressure 10 bar
Air outlet ½ "
Oil filling capacity 2.2 l

Dimensions and Weights:
Length (product) approx. 580 mm
Width/Depth (product) approx. 480 mm
Height (product) approx. 760 mm
Weight (net) approx. 94 kg

Equipment:

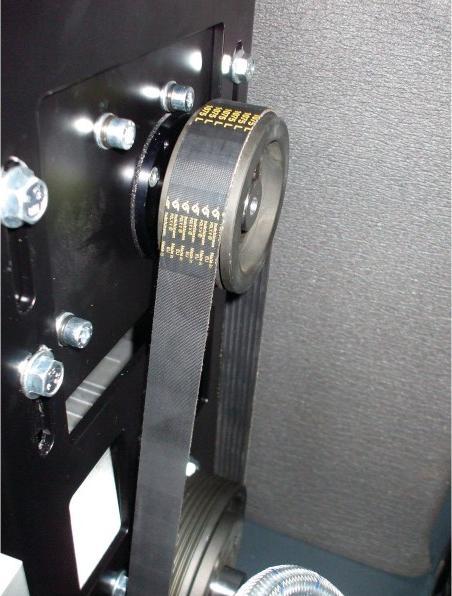

Drive transmission: Ribbed belt

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Power consumption of electric motor 4 kW
Motor efficiency class IE3

Noise Emission:
Sound pressure level Lp 60 dB(A)
Explanation of sound pressure level: Sound pressure level at 1 m distance according to DIN 45635 T 13

Motor(s):
Motor type: Electric.
