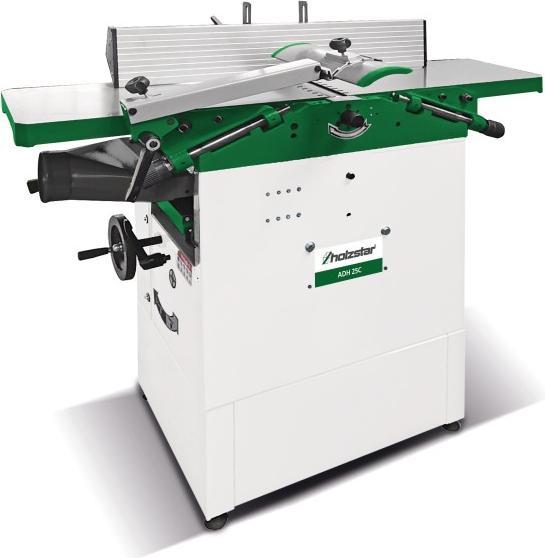

Stürmer - Abricht-Dickenhobel ADH 25C (230 V) Holzstar

Description
For precise edge jointing (90°) and planing of solid wood boards, planks, and strips. Simple and accurate adjustment of chip removal during precise thickness planing. Jointing and thickness tables made of cast iron with a ground surface. Planer knife shaft with three HSS knives. Aluminum jointing fence tiltable up to 45°. Integrated, foldable chip extraction hood.

Technical Data
Dimensions and Weights
Length (Product) approx. 1100 mm
Width/Depth (Product) approx. 700 mm
Height (Product) approx. 980 mm
Weight (Net) approx. 142 kg

Jointing
Jointing table length 1090 mm
Jointing table width 255 mm
Working height 860 mm
Max. chip removal jointing 3 mm
Swivel range jointing fence 90 – 45 °
Dust extraction connection
Dust extraction port diameter 100 mm

Thicknessing
Thicknessing table length 600 mm
Thicknessing table width 248 mm
Min. working height thickness 5 mm
Max. working height thickness 195 mm
Max. chip removal thickness 2 mm

Electrical Data
Input power 1.5 kW
Connection voltage 230 V
Mains frequency 50 Hz

Planer Knife Shaft
Planer shaft type strip planer knife shaft
Planer shaft diameter 75 mm
Number of planer knives 3 pcs
Planer shaft speed 4000 min¯¹
Max. planer width 250 mm

Feed
Feed speed 8 m/min.
