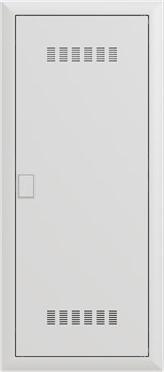

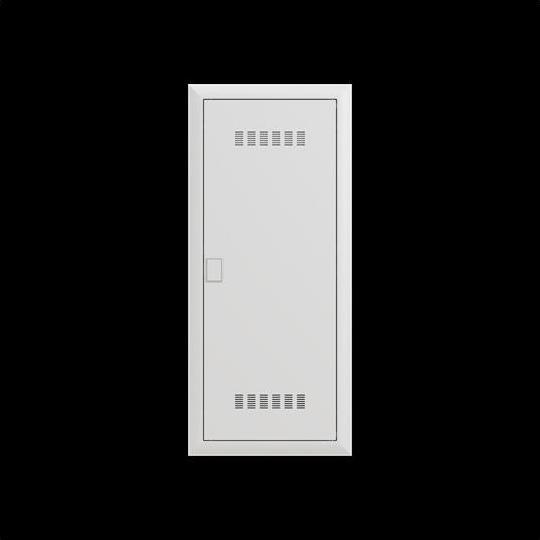

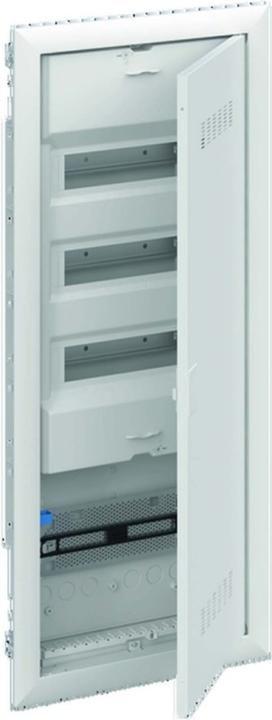

Striebel & John Striebel&John combi distributor UK663CV

Striebel&John Combination Distributor UK663CV

Manufacturer: Striebel&John
Designation: Combination distributor 3-row with ventilated door
Type: UK663CV
Mounting type: Flush-mounted
Number of rows: 5
Width in division units: 12
Type of cover: Door
Cover design: Closed
Transparent cover/door: No
Material of housing: Plastic
Height: 872 mm
Width: 384 mm
Depth: 97 mm
Installation depth: 81 mm
Installation height: 480 mm
Installation width: 280 mm
Inner depth: 95 mm
Ground terminal block: Yes
Neutral terminal block: Yes
DIN rail: Yes
With mounting plate: Yes
Mounting option: Yes
EMC version: No
Color: White
RAL number: 9016
Protection class (IP): IP30
With lock: Yes
Type of locking: Push button
Signal-passing door: No

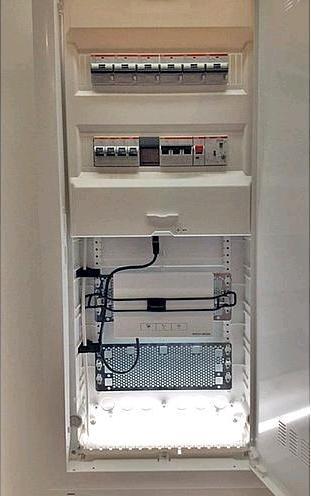

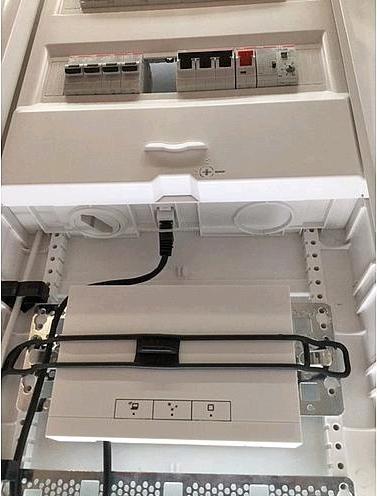

The combination distributors of the UK600 series are designed for flush mounting. They impress with many new and unique technical features. A connection space that is up to 200% larger allows for easy and efficient installation of devices. With the generous space, all conceivable devices such as routers or other media modules can find their secure place. With the innovative combination distributor, we combine the function of a circuit distributor with that of a media distributor. A flexible partition wall allows the media area and the actual distribution area to be separated from each other. In both areas, you can rely on the innovative mounting details of the UK600. With an optionally available interchangeable frame, the UK600 becomes an eye-catcher in no time and integrates into any environment. The distributors can be used for flush-mounted and hollow wall installation and carry a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24.
