Striebel & John STR 2V23KA Distribution panel

Ratings
Delivered between Fri, 3.7. and Fri, 17.7.
free shipping

Product details

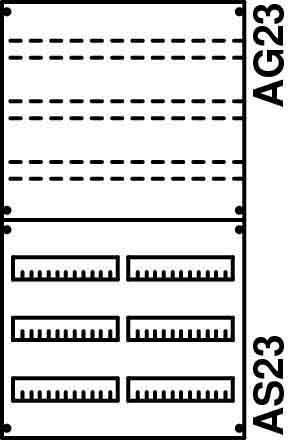

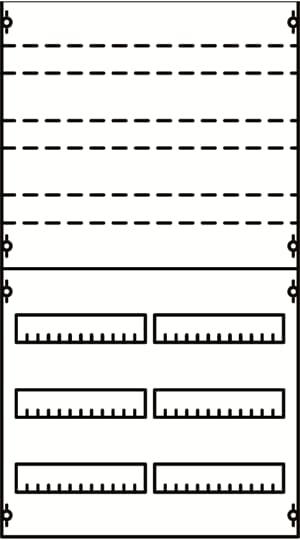

Interior installation system, distribution fields, mounted on EDF profile, for modular devices and terminal blocks, snap unit 6 RE = 900 mm, field width 2 = 500 mm, 144 mounting units, row spacing: 125, expansion with hat profile rail 35 x 15 mm with perforation for wire holders, for installation devices according to DIN 43880, plastic covers, 90-degree pressure-rotary lock, RAL 7035, cover design: with cutout, usable from a cabinet depth of 120 mm. Distribution fields or field combinations must have the same grid units as the cabinets into which they are installed. For floor-standing and modular enclosures, two fields or field combinations must be installed one above the other. The EDF profile rails are included in the delivery.

Key specifications

Width
500 mm
Height
900 mm

General information

Item number
32115531
Manufacturer
Striebel & John
Category
Wiring closet technology
Manufacturer no.
2CPX037638R9999
Release date
16.11.2022

Colour

Colour
Grey
Exact colour description
RAL 7035

Material

Material group
Plastic
Material
Plastic

Distribution cabinet technology Features

Area of use
Inside

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
500 mm
Height
900 mm
Depth
120 mm
