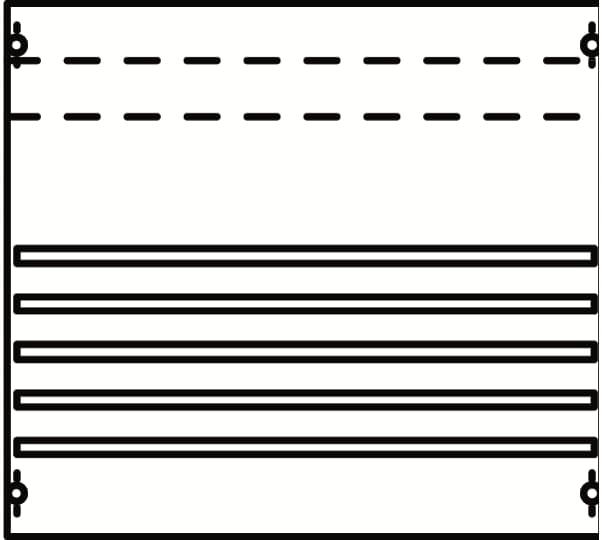

Striebel & John STR 2V002A Distribution panel BH

Ratings
Delivered between Sat, 11.7. and Sat, 25.7.
free shipping

Product details

Interior construction system, distribution fields, mounted on EDF profile, for busbars and terminal blocks, snap-in unit 3 RE = 450 mm, field width 2 = 500 mm, 72 space units, with 5-pole busbar system, busbar orientation: horizontal, with busbar holder ZB5, busbar center distance: 40 mm, with 5 copper bars, rated current In max. 360 A, plastic covers, 90-degree pressure-rotary lock, RAL 7035, cover design: closed, usable from a cabinet depth of 120 mm. Distribution fields or field combinations must have the same grid units as the cabinets they are installed in. For floor-standing and modular enclosures, two fields or field combinations must be installed one above the other. The EDF profile rails are included in the delivery.

Key specifications

Width
500 mm
Height
450 mm

General information

Item number
32115527
Manufacturer
Striebel & John
Category
Wiring closet technology
Manufacturer no.
2CPX037609R9999
Release date
16.11.2022

Colour

Colour
Grey
Exact colour description
RAL 7035

Material

Material group
Metal, Plastic
Material
Cu rails, Plastic

Distribution cabinet technology Features

Nominal current
360 A
number of poles
5

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
500 mm
Height
450 mm
Depth
120 mm

30-day right of return
24 Months Warranty (Bring-in)
