Striebel & John Flush-mounted distributor

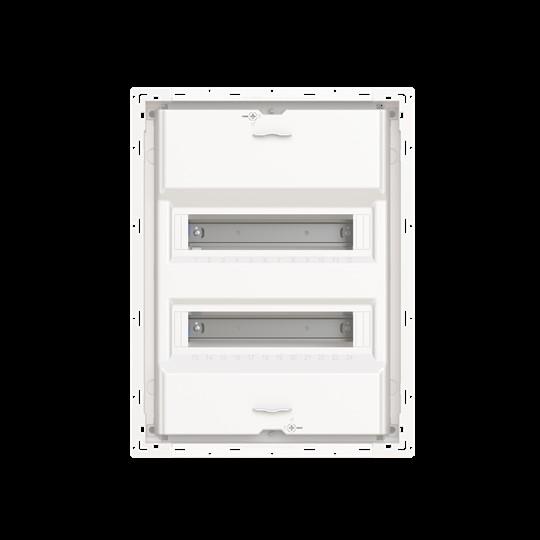

Striebel & John Flush-Mounted Distribution Board UK624NB

Manufacturer: Striebel & John
Description: Flush-mounted distribution board 24PLE without door/front panel
Type: UK624NB
Mounting type: Flush-mounted
Number of rows: 2
Width in division units: 12
Type of cover: optional
Cover design: closed
Transparent cover/door: no
Material of the housing: plastic
Height: 472 mm
Width: 362 mm
Depth: 97 mm
Installation depth: 75 mm
Installation height: 355 mm
Installation width: 280 mm
Inner depth: 75 mm
Earth terminal block: yes
Neutral terminal block: yes
DIN rail: yes
With mounting plate: no
Mounting option: yes
EMC version: no
Color: white
RAL number: 9016
Protection class (IP): IP30
With lock: no
Type of closure: other
Signal-passing door: no

The circuit distribution boards of the UK600 series are designed for flush mounting. They impress with many new and unique technical features. A connection space that is up to 200% larger allows for easy and efficient installation of devices. The removable device carrier can be positioned in the distributor according to requirements, ensuring easy installation as well. Clever details such as the cable entry sliders with integrated terminal holder and the variable use in solid or drywall constructions highlight the high flexibility of the distributors. With an optionally available interchangeable frame, the UK600 quickly becomes an eye-catcher and integrates into any environment. The distributions can be used in flush and hollow wall mounting and have a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24.
